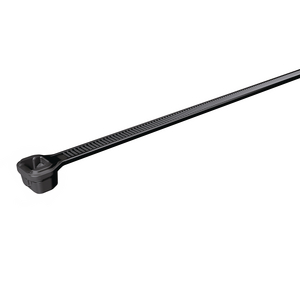

Cable tie inside serrated, 715x13mm, ⌀12-205mm, black, 50pcs.
Art.-No. 108-00047
| X250I-PA66W-BK
|
Copied
- Inside serrated cable tie
- High tensile strength around cable bundles
- Smooth, rounded head design
- Space saving solution
- Improved ergonomic design
- Provides a secure fastening with no lateral movement
Show more
Show less
Request quote
More products in this product group:
| Application | The X-Series range of cable ties provides a new and improved design compared with standard cable ties, delivering a range of benefits and enhanced performance. With a new streamlined design and smaller head, the X-Series cable ties provide a superior fixing solution for tight applications, whilst also benefiting from a better grip around the bundle. This professional cable tie range is available in weather resistant and high impact / heat stabilised materials, ensuring these fixings consistently perform well both at high temperatures and in cold environments. |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Local order number | X250I.WB2P |
| Material | Polyamide 6.6, UV-resistant (PA66W) |
| Min.Tensile Strength | 1115N |
| PART DESCRIPTION | X250I-PA66W-BK |
| Package Content | 50pcs. |
| Package Content packed in | Bag |
| Product Family | X-Series |
| Product Group | Cable ties with smart design |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie 715x13 mm, UV-resistant, black |
| Tie Closure | plastic pawl |
| Type | X250I |
| UV-Stabilised | Yes |
| Variant | Inside Serrated |
| Weight/Unit | 0.018495kg |
| ELV compliant Dir. Art. 4 (2) | Yes |
| EPD File Link | Link |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | IEC 62275, UL 62275 |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660342547 |
| Packaging 1 - Height (m) | 0.032m |
| Packaging 1 - Length (m) | 0.85m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00408m³ |
| Packaging 1 - Weight (kg) | 0.92475kg |
| Packaging 1 - Width (m) | 0.15m |
| Packaging 3 - Height (m) | 0.188m |
| Packaging 3 - Length (m) | 0.893m |
| Packaging 3 - Qty | 600 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0408m³ |
| Packaging 3 - Weight (kg) | 11.786kg |
| Packaging 3 - Width (m) | 0.243m |
| Packaging 4 - Height (m) | 1.119m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 9000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.074m³ |
| Packaging 4 - Weight (kg) | 198.79kg |
| Packaging 4 - Width (m) | 0.8m |
