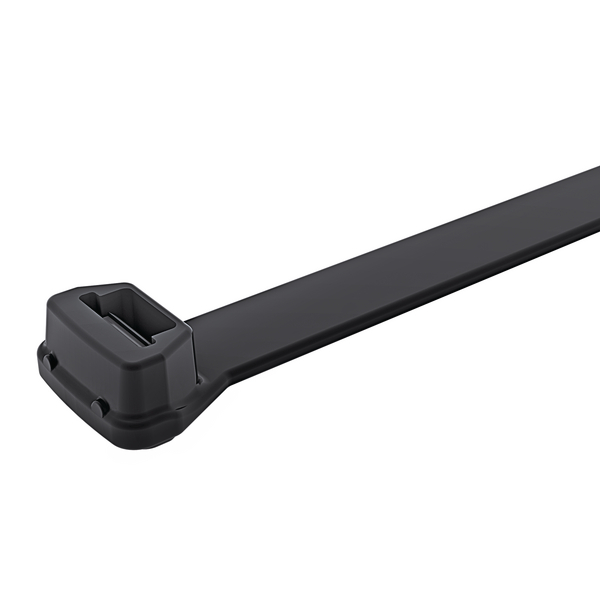

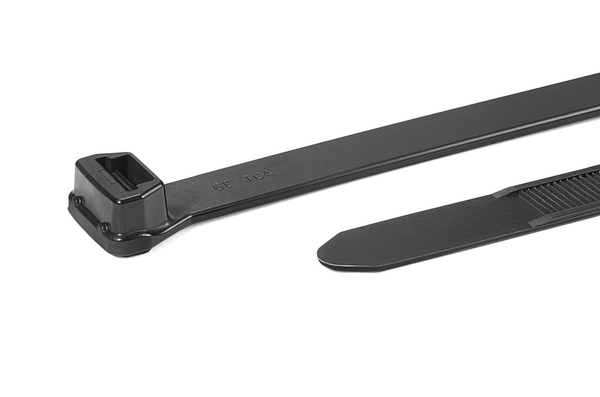

Cable tie inside serrated, 535x13mm, Ø12-150mm, black, 50pcs.
Art.-No. 108-00050 | X250R-PA66HIRHS-BK Details

  • Inside serrated cable tie
  • High tensile strength around cable bundles
  • Smooth, rounded head design
  • Space saving solution
  • Improved ergonomic design
  • Provides a secure fastening with no lateral movement
Show more

Request your individual offer now

e-Learning
Application The X-Series range of cable ties provides a new and improved design compared with standard cable ties, delivering a range of benefits and enhanced performance. With a new streamlined design and smaller head, the X-Series cable ties provide a superior fixing solution for tight applications, whilst also benefiting from a better grip around the bundle. This professional cable tie range is available in weather resistant and high impact / heat stabilised materials, ensuring these fixings consistently perform well both at high temperatures and in cold environments.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Identification Plate Position none
Local order number X250R.SB2P
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION X250R-PA66HIRHS-BK
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family X-Series
Product Group Cable ties with smart design
Releasable Closure (Yes/No) No
Short Description Cable Tie 535x13 with rounded head design PA66HIRHS black
Tie Closure plastic pawl
Type X250R
Variant Inside Serrated
Bundle Diameter max (metric) 150mm
Bundle ∅ 12-150mm
Bundle ∅ min. 12mm
Length (L) 535mm
Min.Tensile Strength 1115N
Thickness (T) 1.9mm
Weight/Unit 0.014583kg
Width (W) 13mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Specifications IEC 62275, UL 62275
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660342585
Packaging 1 - Height (m) 0.053m
Packaging 1 - Length (m) 0.725m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0073
Packaging 1 - Weight (kg) 0.729151kg
Packaging 1 - Width (m) 0.19m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 9.551812kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 212.036kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
