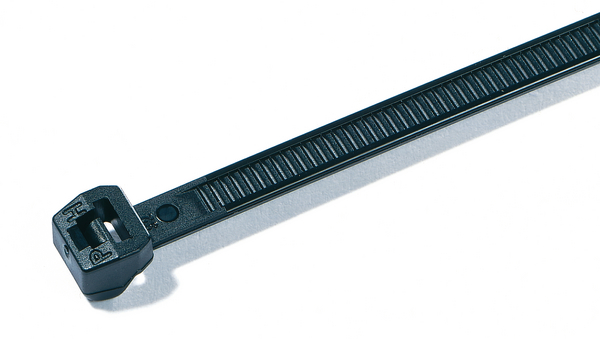

Cable tie outside serrated, 385.0x7.6mm, Ø5.0-105.0mm, black, 100pcs.
Art.-No. 118-00066 | T120ROS-PA66HS-BK Details

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Show more

Request your individual offer now

e-Learning
Application OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Identification Plate Position none
Local order number T120ROS.HB3P
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T120ROS-PA66HS-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family OS-Series
Product Group Cable ties for thin-walled bundles
Releasable Closure (Yes/No) No
Short Description Cable Tie outside serrated 385x7.6 mm, heat stabilised, black
Tie Closure plastic pawl
Type T120ROS
Variant Outside Serrated
Bundle Diameter max (metric) 105.0mm
Bundle ∅ 5.0-105.0mm
Bundle ∅ min. 5.0mm
Cable Tie Head Height (metric) 8mm
Cable Tie Head Length (metric) 9.5mm
Cable Tie Head Width (metric) 13.5mm
Height (H) 1.8mm
Length (L) 385.0mm
Min.Tensile Strength 535N
Strap Width max. (G) 7.6mm
Thickness (T) 1.8mm
Weight/Unit 0.00526kg
Width (W) 7.6mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Specifications EN 45545-2
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660329500
Packaging 1 - Height (m) 0.04m
Packaging 1 - Length (m) 0.559m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00454
Packaging 1 - Weight (kg) 0.560001kg
Packaging 1 - Width (m) 0.203m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 12.00202kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 261.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
