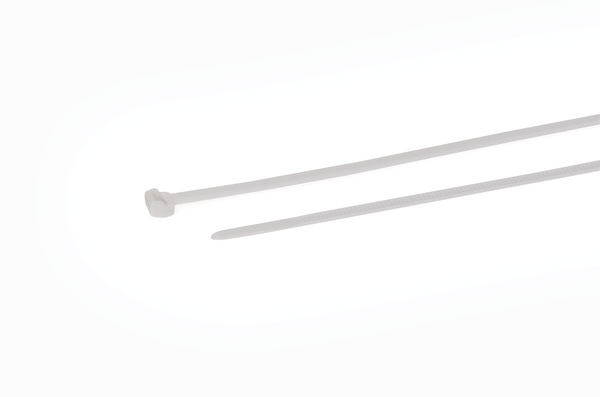

Cable tie outside serrated, 200x3.4mm, Ø1.6-50.0mm, white, 100pcs.
Art.-No. 118-00080 | T30LOS-PA66V0-WH Details

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head design
  • Easy insertion combined with high tensile strength
  • PA46 material for higher temperatures up to +195 °C (500 h)
  • PA66V0 cable ties fulfill Limited Fire Hazard requirements
  • Easy application either manually or with a processing tool
Show more

Request your individual offer now

e-Learning
Application OS-Series cable ties are used in many areas where thin-walled or soft insulation wires and cable are being installed, for instance automotive and aircraft industry. OS ties manufactured from PA66V0 material are suitable for applications where safety regulations require reduction of smoke and dangerous gases.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP
Colour White (WH)
Identification Plate Position none
Local order number T30LOS.9N3P
Material Polyamide 6.6 V0 (PA66V0)
PART DESCRIPTION T30LOS-PA66V0-WH
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family OS-Series
Product Group Cable ties for thin-walled bundles
Releasable Closure (Yes/No) No
Short Description Cable Tie outside serrated 200x3.4 mm, PA66V0, white
Tie Closure plastic pawl
Type T30LOS
Variant Outside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 1.6-50.0mm
Bundle ∅ min. 1.6mm
Length (L) 200mm
Min.Tensile Strength 135N
Thickness (T) 1.2mm
Weight/Unit 0.00075kg
Width (W) 3.4mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Specifications EN 45545-2
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660331299
Packaging 1 - Height (m) 0.027m
Packaging 1 - Length (m) 0.191m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00085
Packaging 1 - Weight (kg) 0.100001kg
Packaging 1 - Width (m) 0.164m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 10000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 10.8021kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 237.04kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
