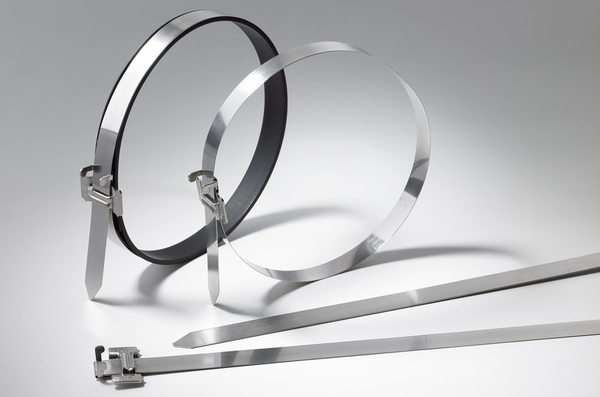

Stainless steel cable tie, folding, 600.0x16.0mm, Ø125.0mm, metal, 10pcs.
Art.-No. 111-00328 | AMT6L16SB-SS316-ML Details

  • AMT ties for heavy-duty application
  • Available in type 316 stainless steel
  • Suitable for applications with high vibrations

Request your individual offer now

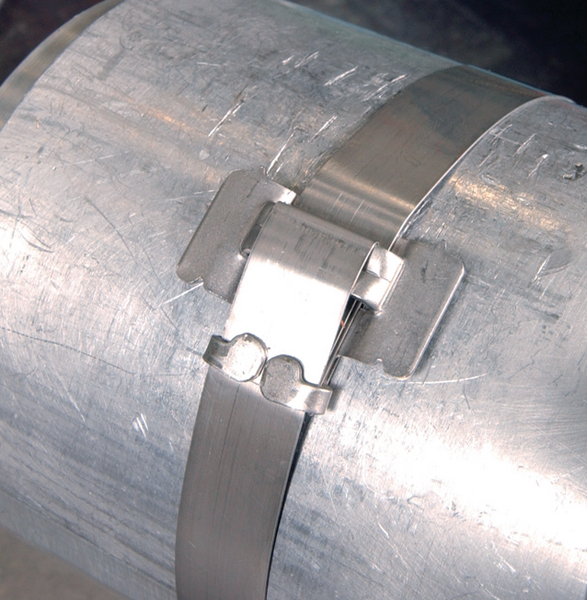

Application The AMT tie is designed for heavy duty applications. The folding mechanism ensures that the tie will not become loose under vibration. Therefore in all safety relevant areas where vibration is normal, such as in the rail, ship or construction industry, this product is ideal.
Application Tool HDT16
Colour Metal (ML)
Identification Plate Position none
Key product features vibration absorbing
Local order number 111-00328
Material Stainless Steel (SS316)
Pack Cont. 10pcs.
Package Content packed in Bag
PART DESCRIPTION AMT6L16SB-SS316-ML
Product Family AMT-Series, Stainless Steel 316
Product Group Metal Banding for Heavy Duty Application
Releasable Closure (Yes/No) No
Short Description Stainless steel cable tie 600x16 mm, for heavy duty application

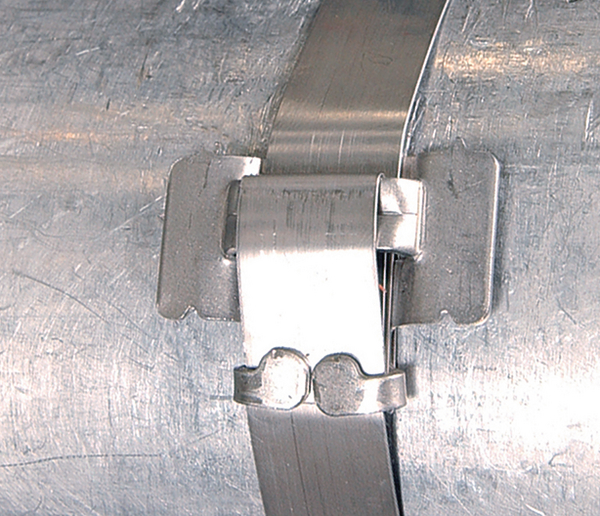

Tie Closure folding
Variant Extended Length
Bundle Diameter max (Metric) 125.0mm
Bundle ∅ 125.0mm

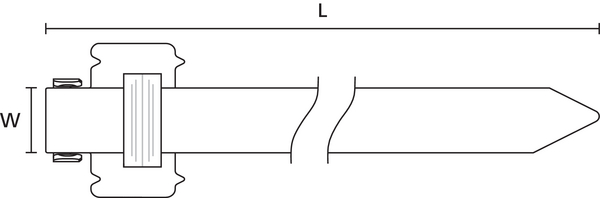

Length (L) 600.0mm
Min.Tensile Strength 2500N
Thickness (T) 0.4mm
Weight/Unit 0.001kg
Width (W) 16.0mm
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Specifications
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660300110
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0006
Packaging 1 - Weight (kg) 0.01kg
Packaging 1 - Width (m) 0.118m
Packaging 3 - Height (m) 0.115m
Packaging 3 - Length (m) 0.91m
Packaging 3 - Qty 200
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0272
Packaging 3 - Weight (kg) 0.7kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 5400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 39.9kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
