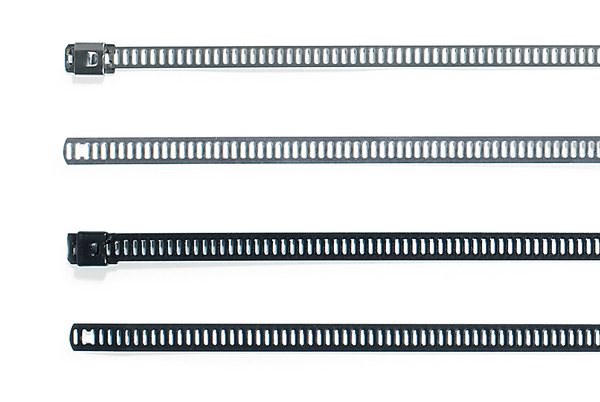

Cable Ties with Raster Locking and Coating : MAT8SSC7
Stainless Steel Cable Tie with Raster Locking and Coating 230x7.0 mm black, Article number: 111-92004
Features
- MAT ties are similar to conventional 'plastic' cable ties
- Work on ratchet system
- Available in type 316 stainless steel
Certifications & Approvals
Application
The MAT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from Mass Transit, Ship building, oil rigs, mining, & chemical to theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits.
MAT-C is suitable for following markets and industries
More products in this product group
Cable Ties with Raster Locking and Coating >| Application Tool | KST-STG200, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Features and Benefits | The MAT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Type MAT cable ties are cable ties which can be put on in stages (locking in the strip). |
| Identification Plate Position | none |
| Pack Cont. | 100pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MAT8SSC7-SS316/SP-BK |
| Product Family | MAT-C |
| Product Group | Cable Ties with Raster Locking and Coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Stainless Steel Cable Tie with Raster Locking and Coating 230x7.0 mm black |
| Tie Closure | ladder style |
| Type | MAT8SSC7.M3P |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 60mm |
| Bundle ∅ min. | 10.0mm |
| Length (L) | 230mm |
| Min.Tensile Strength | 445N |
| Thickness (T) | 0.4mm |
| Width (W) | 7.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Stainless Steel (SS316), Polyester (SP) |
| Operating Temperature - °C | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660019630 |
| Packaging 1 - Height (m) | 0.032m |
| Packaging 1 - Length (m) | 0.233m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00071m³ |
| Packaging 1 - Weight (kg) | 0.315kg |
| Packaging 1 - Width (m) | 0.095m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 13.402kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 289.04kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.315kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
