For hard, smooth surface applications, we recommend the use of our LFPC protective channels.

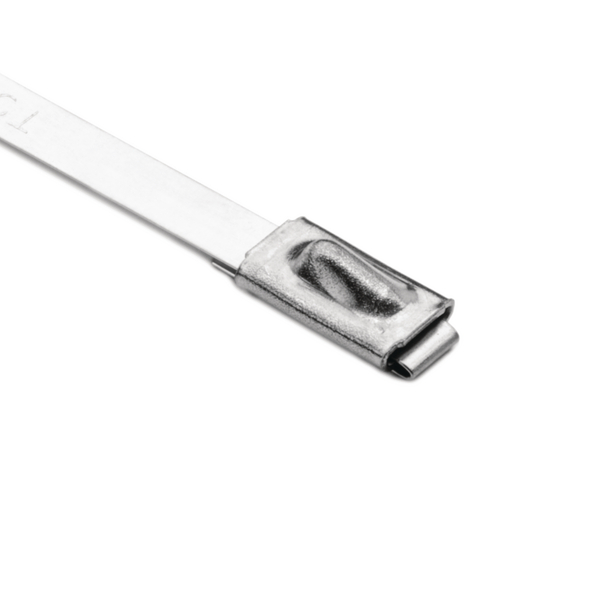

Stainless steel cable tie, ball bearing lock, 838.0x7.9mm, Ø17.0-254.0mm, metal, 50pcs.
Art.-No. 111-94338 | MBT33HS-SS304-ML Details

  • Cable ties MBT, made from stainless steel 304
  • Non-releasable locking feature
  • Corrosion resistant
  • Weather resistant
  • Outstanding chemical resistance
  • High temperature resistant
  • Non-burning
Show more

Request your individual offer now

Application Metal ties are ideal for all applications that require high strength, reliability and fire resistance. The MBT range of stainless steel cable ties can be used in chemical industries and on oil platforms as well as in mass transit, shipbuilding and mining industries. MBT ties are also suitable for machine building, construction and in the outside area of radio technology. Additionally MBT ties are ideal for securing lighting in theatres and exhibition halls.
Application Tool KST-STG200, HDT16, MK9SST, MK9PSST
Colour Metal (ML)
Identification Plate Position none
Internet Customer Notice For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Key product features vibration absorbing
Local order number MBT33H-S.M2P
Material Stainless Steel (SS304)
Pack Cont. 50pcs.
Package Content packed in Bag
PART DESCRIPTION MBT33HS-SS304-ML
Product Family MBT-Series, stainless steel 304
Product Group Cable ties with ball-lock
Releasable Closure (Yes/No) No
Short Description Metal Cable Tie with Ball-Lock 838x7.9 mm
Tie Closure ball bearing lock
Variant Not Serrated
Bundle Diameter max (Metric) 254.0mm
Bundle ∅ 17.0-254.0mm
Bundle ∅ min. 17.0mm
Length (L) 838.0mm
Min.Tensile Strength 2000.0N
Thickness (T) 0.3mm
Weight/Unit 0.016894kg
Width (W) 7.9mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability non-burning
Halogen-free Yes
Hazardous Goods No
Limited Fire Hazard Yes
Operating Temperature -80 °C to +538 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin GB
Customs Number 73269098
GTIN-13 / EAN 5022660312410
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.925m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00243
Packaging 1 - Weight (kg) 0.844701kg
Packaging 1 - Width (m) 0.105m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
