For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Cable ties with ball-lock and coating : MBT49XHFC

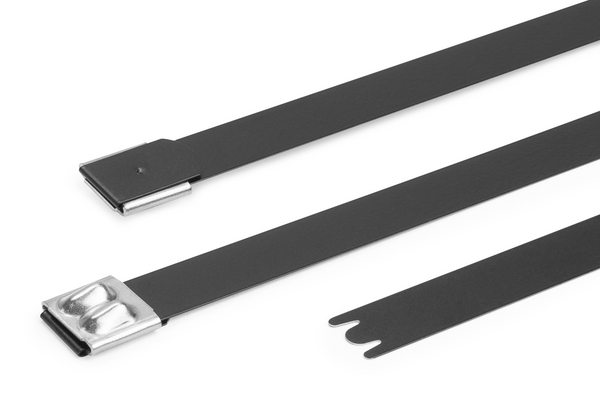

Stainless Steel Cable Tie with Ball-Lock and Coating 1245x12.3 mm, blackArticle number: 111-01504
Features
- Fully coated MBT, made from type 316 stainless steel with polyester coating
- Non-releasable locking feature
- Coated cable tie with smooth edges
- Comfortable handling and installation
- Eliminates contact corrosion between dissimilar materials during application
Certifications & Approvals
Application
The MBT range of stainless steel cable ties can be used in the most arduous of conditions or where the additional security, strength and fire resistance of a metal fixing is required. Used in all industries from mass transit, ship building, oil rigs, mining and chemical industry, theatres and exhibition halls. In the event of a fire, cables will remain securely held in place and will not fall to block emergency exits. Fully coated ties can also be used to avoid any reflection. An important consideration for instance in the defence industry.
More products in this product group
Cable ties with ball-lock and coating >| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Pack Cont. | 25pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MBT49XHFC-SP/SS316-BK |
| Product Family | MBT-FC-Series, stainless steel 316 |
| Product Group | Cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Stainless Steel Cable Tie with Ball-Lock and Coating 1245x12.3 mm, black |

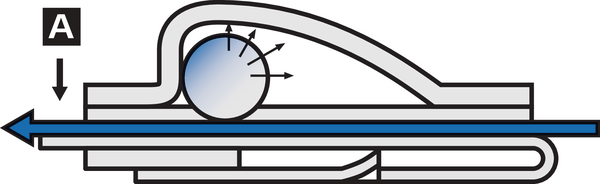

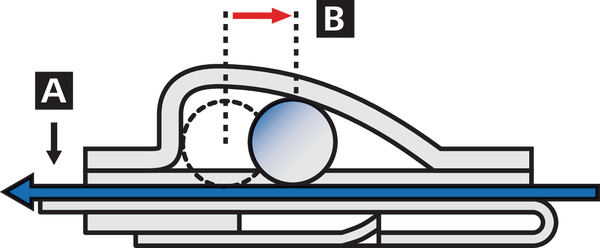

| Tie Closure | ball bearing lock |
| Type | MBT49XHFC.M1P |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 380mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 1245mm |
| Min.Tensile Strength | 1620N |
| Thickness (T) | 0.38mm |
| Width (W) | 12.3mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyester (SP), Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660341571 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.153m |
| Packaging 1 - Qty | 25 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00034m³ |
| Packaging 1 - Weight (kg) | 0.970001kg |
| Packaging 1 - Width (m) | 0.088m |
| Packaging 3 - Height (m) | 0.21m |
| Packaging 3 - Length (m) | 0.42m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0291m³ |
| Packaging 3 - Weight (kg) | 10.2kg |
| Packaging 3 - Width (m) | 0.33m |
| Packaging 4 - Height (m) | 9.85m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 6000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 9.456m³ |
| Packaging 4 - Weight (kg) | 265.8kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.97kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
