For hard, smooth surface applications, we recommend the use of our LFPC protective channels.
Cable ties with ball-lock and coating : MBT8HFC

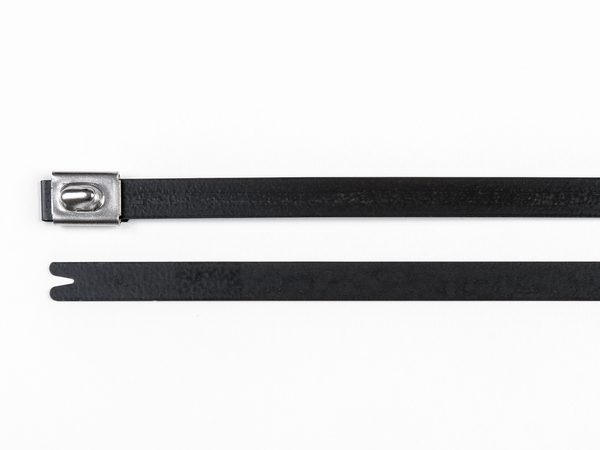

Metal Cable Tie with Ball-Lock and Coating 201x7.9 mm blackArticle number: 111-00294
Features
- Fully coated MBT, made from type 316 stainless steel with polyester coating
- Non-releasable locking feature
- Coated cable tie with smooth edges
- Comfortable handling and installation
- Eliminates contact corrosion between dissimilar materials during application
Certifications & Approvals
Application
Stainless Steel cable ties with poyester coating provide a comfortable installation, especially when using outside at low temperatures.
These products are chosen when a high tensile strength is demanded and a sensitive harness requires a carefully bundling.
More products in this product group
Cable ties with ball-lock and coating >| Application Tool | KST-STG200, HDT16, MK9SST, MK9PSST |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Internet Customer Notice | For hard, smooth surface applications, we recommend the use of our LFPC protective channels. |
| Pack Cont. | 50pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | MBT8HFC-SP/SS316-BK |
| Product Family | MBT-FC-Series with Coating |
| Product Group | Cable ties with ball-lock and coating |
| Releasable Closure (Yes/No) | No |
| Short Description | Metal Cable Tie with Ball-Lock and Coating 201x7.9 mm black |
| Tie Closure | ball bearing lock |
| Type | MBT8HFC.M2P |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 50mm |
| Bundle ∅ min. | 17mm |
| Length (L) | 201mm |
| Min.Tensile Strength | 1020N |
| Thickness (T) | 0.38mm |
| Width (W) | 7.9mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | non-burning (except coating) |
| Halogenfree | Yes |
| Hazardous good | No |
| Limited Fire Hazard | Yes |
| Material | Polyester (SP), Stainless Steel (SS316) |
| Operating Temperature - °C | -80 °C to +538 °C |
| Operating Temperature Coating | -50 °C to +150 °C |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660312564 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.235m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00067m³ |
| Packaging 1 - Weight (kg) | 0.295kg |
| Packaging 1 - Width (m) | 0.095m |
| Weight | 0.295kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
