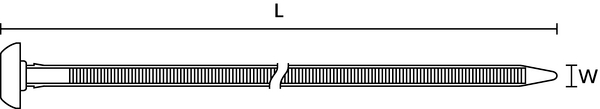

Cable tie outside serrated for direct fixation, 370x7.6mm, ⌀14.0-106mm, black, 100pcs.
Art.-No. 132-00000
| LHT370-PA66-BK
|
Copied
- Both sides of the cable tie serrated
- BHT-Series with round head for larger bearing area
- BHT375 for centred position
- CT- and DE-Series with small squared head for restricted space areas
- Tensioning with application tool
Show more
Show less
Request quote
More products in this product group:
| Application | Using a single hole these 'chassis ties' are widely used in the automotive, truck and heavy equipment markets. Ideal for applications which have access to both sides of the hole - for example truck frames. |
| Cable Tie | Polyamide 6.6 (PA66) |
| Colour | Black (BK) |
| Identification Plate Position | none |
| Key product features | for direct fixation |
| Local order number | LHT370.NB3P |
| Material | Polyamide 6.6 (PA66) |
| Material Head | Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 535N |
| PART DESCRIPTION | LHT370-PA66-BK |
| Package Content | 100pcs. |
| Package Content packed in | Bag |
| Product Family | Chassis ties |
| Product Group | Cable ties for single hole application |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable tie outside serrated for direct fixation, 370x7.6mm, Dmin=14.0mm, Dmax=106mm, black |
| Tie Closure | plastic pawl |
| Type | LHT370 |
| Variant | Outside Serrated |
| Weight/Unit | 0.005085kg |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660309052 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.51m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0042075m³ |
| Packaging 1 - Weight (kg) | 0.524kg |
| Packaging 1 - Width (m) | 0.165m |
| Packaging 3 - Height (m) | 0.184m |
| Packaging 3 - Length (m) | 0.58m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0406m³ |
| Packaging 3 - Weight (kg) | 8.47446kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 224.52kg |
| Packaging 4 - Width (m) | 0.8m |
