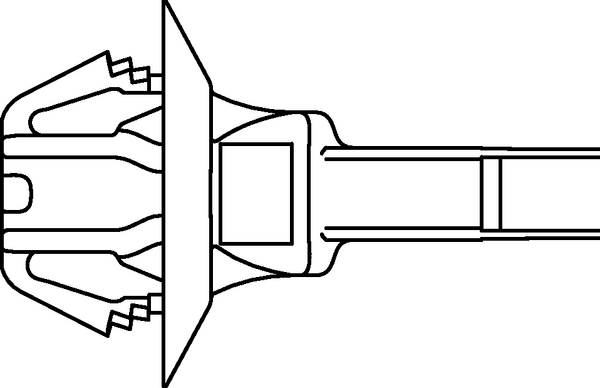

Fixing tie for hole (oval), outside serrated, Ø1.6-35mm, black, 500pcs.
Art.-No. 126-00319
| OS170AH712-PA66HS-BK
|
Details
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Application | With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building. |
| Application Tool | ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Local order number | OS170AH712/PA66HS/BK/5000 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| PART DESCRIPTION | OS170AH712-PA66HS-BK |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Variant | Outside Serrated |
| Bundle Diameter max (metric) | 35mm |
| Bundle ∅ | 1.6-35mm |
| Bundle ∅ min. | 1.6mm |
| Disc ∅ | 16.0mm |
| Fixing Hole Shape | Oval |
| for Hole ∅ (FH) | 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 3.2 mm |
| Height (H) | 1.2mm |
| Hole Depth | 9mm |
| Length (L) | 169.3mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.2mm |
| Weight/Unit | 0.001832kg |
| Width (W) | 5.5mm |
Download
| Country of Origin | KR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026597508 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.44m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0125m³ |
| Packaging 1 - Weight (kg) | 0.956kg |
| Packaging 1 - Width (m) | 0.355m |
| Packaging 3 - Height (m) | 0.365m |
| Packaging 3 - Length (m) | 0.54m |
| Packaging 3 - Qty | 5000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0719m³ |
| Packaging 3 - Weight (kg) | 10.64kg |
| Packaging 3 - Width (m) | 0.365m |
| Packaging 4 - Height (m) | 12.39m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 11.894m³ |
| Packaging 4 - Weight (kg) | 148.68kg |
| Packaging 4 - Width (m) | 0.8m |
