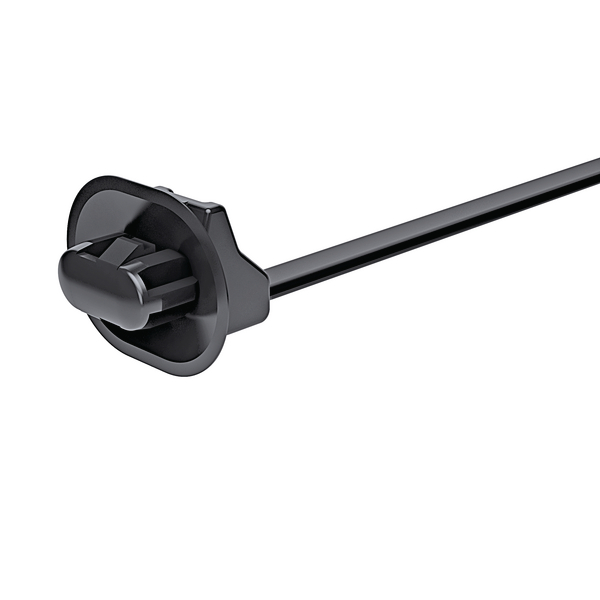

1-piece fixing ties with arrowhead, with disc : T50SOSKSFT62x122PT1.7-2.3
1-piece fixing ties with arrowhead, with disc, for oval holesArticle number: 126-00142
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Versions for oval holes feature anti-twist protection
Certifications & Approvals
Application
With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
More products in this product group
1-piece fixing ties with arrowhead, with disc >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Pack Cont. | 1000pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SOSKSFT62x122PT1.7-2.3-PA66HS-BK |
| Product Family | 1-piece fixing ties with arrowhead, with disc, for oval holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T50SOSKSFT62x122PT1.7-2.3_HS_M1 |
| Bundle ∅ max. | 35.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 16.0 x 21.0 |
| for Hole ∅ (FH) | 6.2 x 12.2 mm |
| for Panel Thickness min - max | 1.7 - 2.3 mm |
| Length (L) | 159.0mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.3mm |
| Width (W) | 4.6mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026411194 |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Weight (kg) | 1.784216kg |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.956864kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 116.472kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.7kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
