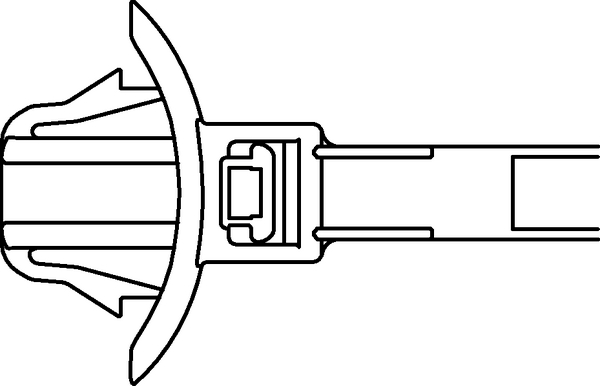

Fixing tie for hole (oval), Ø1.6-35mm, black, 500pcs.
Art.-No. 126-00323 | OS170WPM712-PA6HS-BK |  Details

A wide range of arrowhead fixing ties which are suitable for different panel thicknesses and hole diameters.

    • Easy to assemble without the need for a tool
    • Cable tie head always situated in defined position
    • Arrowhead simply locks into place
    • Supporting legs provide a secure and firm fixing in areas where space is limited
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Distributors near you
    Downloads
    Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK)
    Fixation Method Arrowhead for oval holes
    Identification Plate Position none
    Local order number OS170WPM712/PA66HS/BK/5000
    Material Polyamide 6, heat stabilised (PA6HS)
    Pack Cont. 500pcs.
    Package Content packed in Bag
    PART DESCRIPTION OS170WPM712-PA6HS-BK
    Product Family for oval holes
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Bundle Diameter max (metric) 35mm
    Bundle ∅ 1.6-35mm
    Bundle ∅ min. 1.6mm
    Disc ∅ 22.8mm
    Fixing Hole Shape Oval
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    Height (H) 1.2mm
    Hole Depth 7.6mm
    Length (L) 169.6mm
    Min.Tensile Strength 150N
    Thickness (T) 1.2mm
    Width (W) 5.5mm
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    Specifications
    Country of Origin KR
    GTIN-13 / EAN 4031026597546
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
