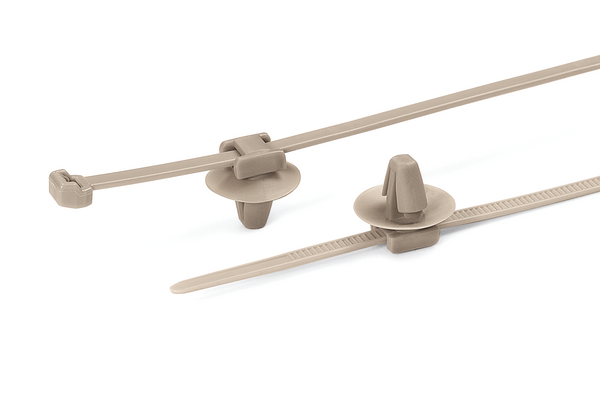

Fixing tie for hole (round), outside serrated, Ø4.0-35.0mm, beige, 500pcs.
Art.-No. 156-01090 | PT2AP1SFT6.5-PEEK-BGE Details

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Features Material PEEK: -55 °C to +240 °C operating temperature
  • Excellent resistance against chemicals and gamma radiation
Show more

Request your individual offer now

Application The ties with fixing element P1SFT6,5 or P2SFT6,5 are ideal when the requirement for temperature or chemical resistance is very high. They are used for cable harnesses in the automotive industry.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Beige (BGE)
Fixation Method arrowhead
Identification Plate Position none
Local order number PT2AP1SFT6,5-PEEK-BGE-D1
Material Polyetheretherketone (PEEK)
PART DESCRIPTION PT2AP1SFT6.5-PEEK-BGE
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family For Temperatures up to +240 °C
Product Group 2-piece fixing ties with arrowhead, with disc
Short Description 2-Piece fixing tie 145x3.4 mm, with arrowhead, PEEK, beige
Tie Closure plastic pawl
Type PT2AP1SFT6.5
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 4.0-35.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
Length (L) 145.0mm
Min.Tensile Strength 230N
Panel Thickness max. 0.7 – 1.3mm
Thickness (T) 1.2mm
Weight/Unit 0.001226kg
Width (W) 3.4mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.7 - 1.3 mm
for Panel Thickness min - max 0 - 0.1 "
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0 (3 mm)
Hazardous Goods No
Operating Temperature -55 °C to +240 °C
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026462837
Packaging 1 - Height (m) 0.105m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01914
Packaging 1 - Weight (kg) 0.642135kg
Packaging 1 - Width (m) 0.405m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.65308kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.249m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.199
Packaging 4 - Weight (kg) 100.824kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
