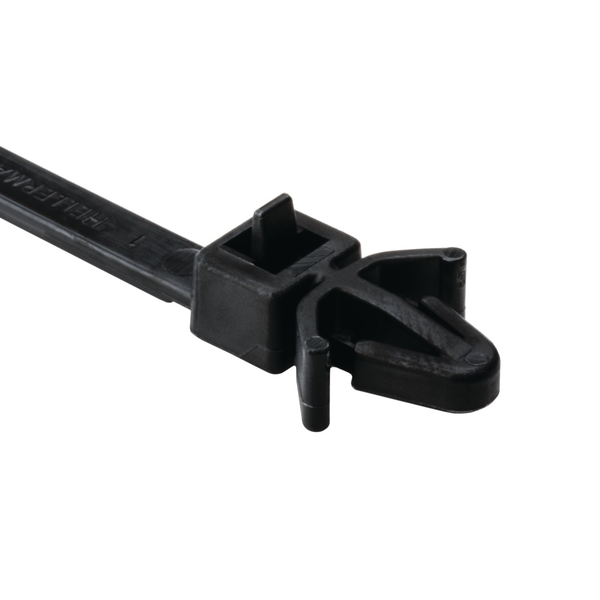

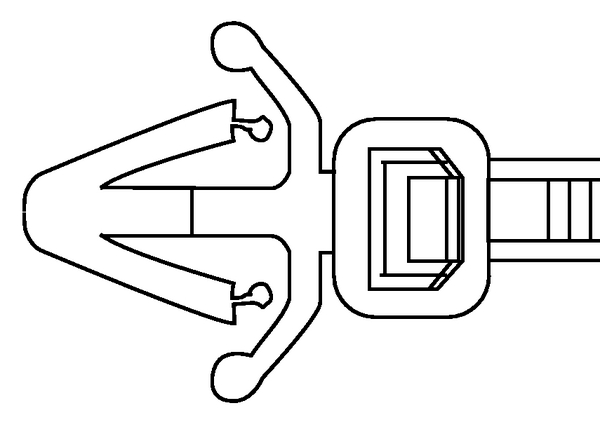

Fixing tie for hole (round), inside serrated, ∅6.0-50.0mm, black, 1000pcs.
Art.-No. 115-06960 | RT50SFK-PA66-BK Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Show more

Request your individual offer now

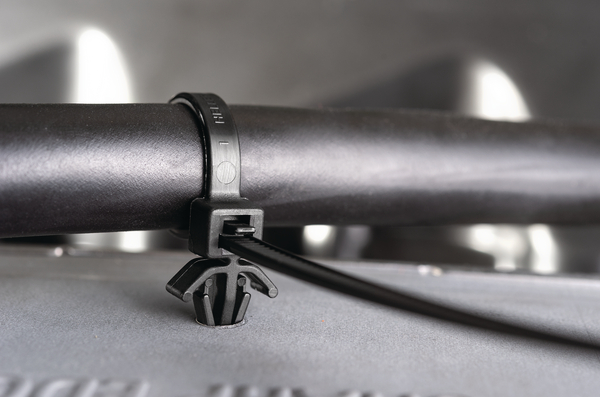

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Anti rotation (Yes / No) NO
Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Local order number 978349.NB7P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RT50SFK-PA66-BK
Pack Cont. 1000pcs.
Package Content packed in Bag
Product Family for round holes, releasable
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, releasable
Releasable Closure (Yes/No) Yes
Short Description Fixing Tie 225x5.0 black
Type RT50SFK
Variant Inside Serrated
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 6.0-50.0mm
Bundle ∅ min. 6.0mm
Height (H) 6mm
Length (L) 225mm
Min.Tensile Strength 225N
Panel Thickness max. 0.8 - 3.0mm
Thickness (T) 1.4mm
Weight/Unit 0.001993kg
Width (W) 5.0mm
Width (W2) 14.7mm
for Hole ∅ (FH) 6.4 - 7.0 mm
for Panel Thickness min - max 0.8 - 3 mm
for Panel Thickness min - max 0 - 0.3 "
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026108520
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0094
Packaging 1 - Weight (kg) 2.022135kg
Packaging 1 - Width (m) 0.29m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 6000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 12.95281kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 176.424kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
