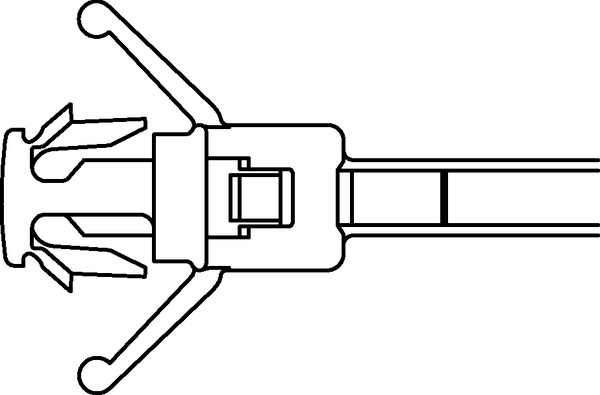

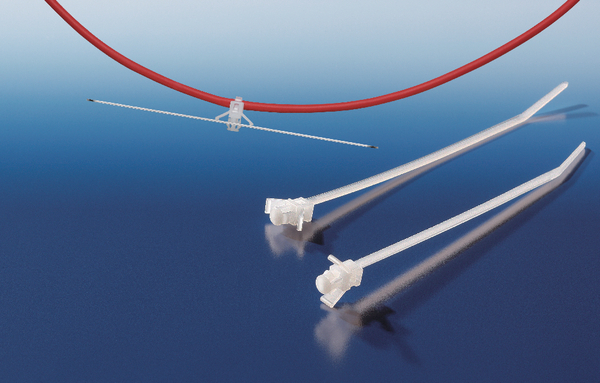

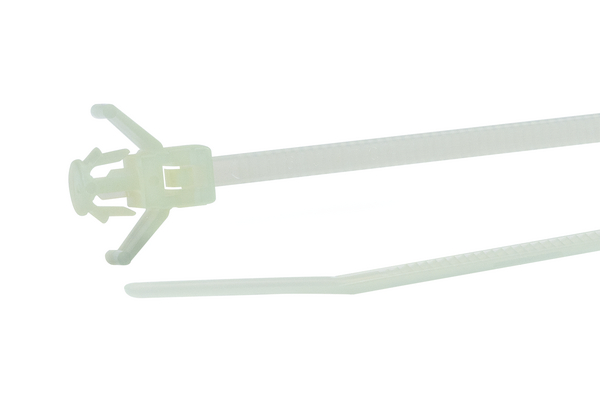

Fixing tie for hole (round), ⌀1-20mm, white, 100pcs.
Art.-No. 126-00196 | LRT18RWPM4.8-PA66V0-WH |

Copied

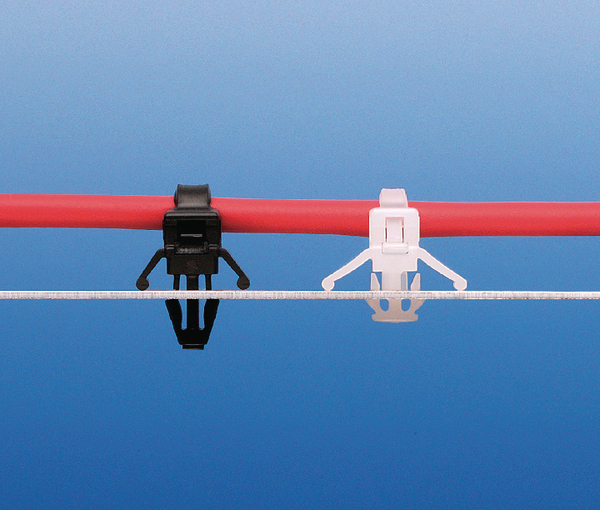

    • It is possible to fix on thin panels (0.4-2.0mm).
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Suitable for use in devices where space saving is required, such as lighting equipment, small home appliances, small electronic devices, and vending machines.
    Suitable for use in devices where it is important that the fixing ties do not catch on anything after the harness has been mounted, such as office automation equipment and cooking appliances.
    Colour White (WH)
    Fixation Method arrowhead
    Identification Plate Position none
    Key product features releasable
    Local order number LRT18RWPM4.8-V0
    Material Polyamide 6.6 V0 (PA66V0)
    PART DESCRIPTION LRT18RWPM4.8-PA66V0-WH
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family for round holes, releasable
    Product Group 1-piece fixing ties with arrowhead, with wings
    Releasable Closure (Yes/No) Yes
    Type LRT18RWPM4.8
    Bundle ⌀ 1-20mm
    Bundle ⌀ max. 20mm
    Bundle ⌀ min. 1mm

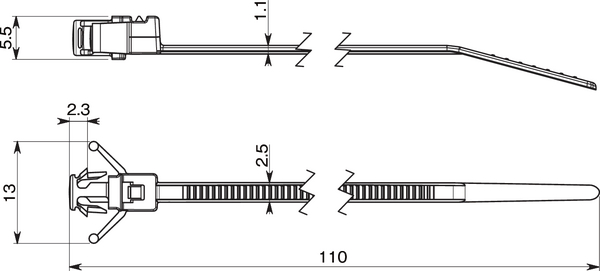

    Height (H2) 5.5mm
    Length (L) 110mm
    Min.Tensile Strength 100N
    Thickness (T) 1.1
    Width (W) 2.5mm
    Width (W3) 13mm
    for Hole ⌀ (FH) 4.7 - 4.9 mm
    for Panel Thickness min - max 0.4 - 2 mm
    Flammability UL 94 V0
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
    Specifications ANSI/UL 1565, ANSI/UL 62275
    UL OCD link Link
    UL Recognized (US) Yes
    UL-File Number E64962
    Country of Origin JP
    GTIN-13 / EAN 4944387107098
    Packaging 3 - Weight (kg) 6.93kg
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
