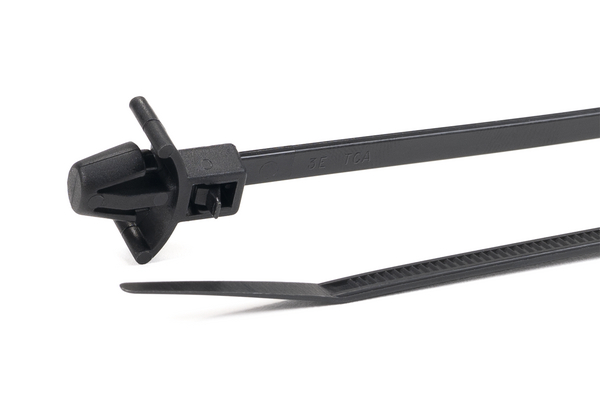

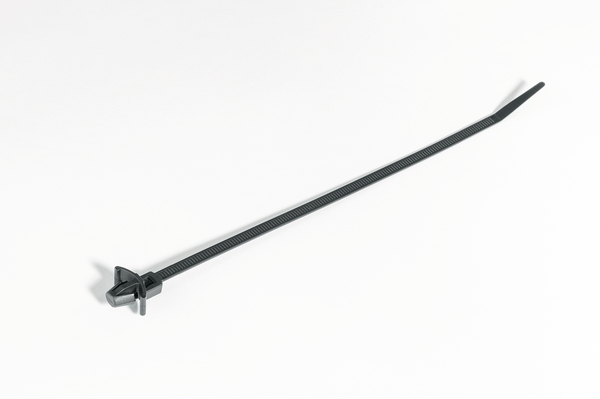

Fixing tie for hole (round), Ø1.5-50.0mm, black, 100pcs.
Art.-No. 115-07010 | RT50RSF-PA66-BK Details

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position
  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited
  • Releasable and therefor reusable
Show more
Package size

Request your individual offer now

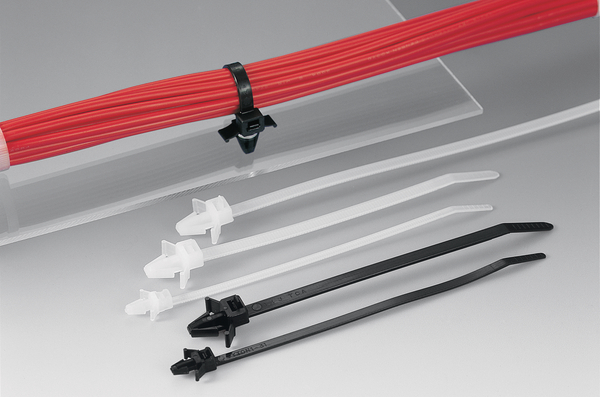

Application With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.
Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Key product features releasable
Local order number RT50RSF.NB3P
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION RT50RSF-PA66-BK
Product Family for round holes, releasable
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings, releasable
Releasable Closure (Yes/No) Yes
Short Description Fixing Tie 215x4.6 black
Bundle Diameter max (metric) 50.0mm
Bundle ∅ 1.5-50.0mm
Bundle ∅ min. 1.5mm
Disc ∅ 18.5mm
Fixing Hole Shape Circular
for Hole ∅ (FH) 7.8 - 8.2 mm
for Panel Thickness min - max 0.8 - 2.5 mm
Height (H) 9.5mm
Length (L) 215mm
Min.Tensile Strength 225N
Thickness (T) 1.5mm
Weight/Unit 0.002117kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660136221
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.36m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0034
Packaging 1 - Weight (kg) 0.211701kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.192m
Packaging 3 - Length (m) 0.586m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0439
Packaging 3 - Weight (kg) 7.15303kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 164.06kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
