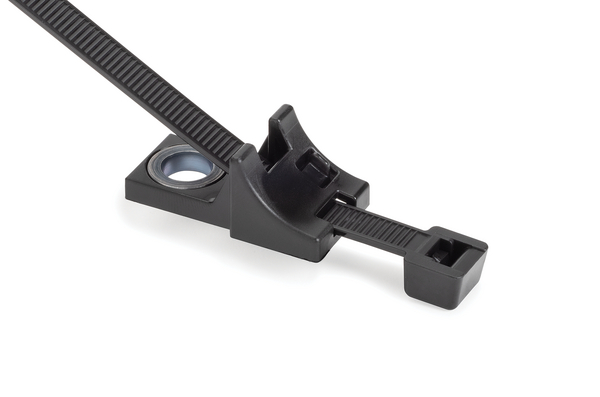

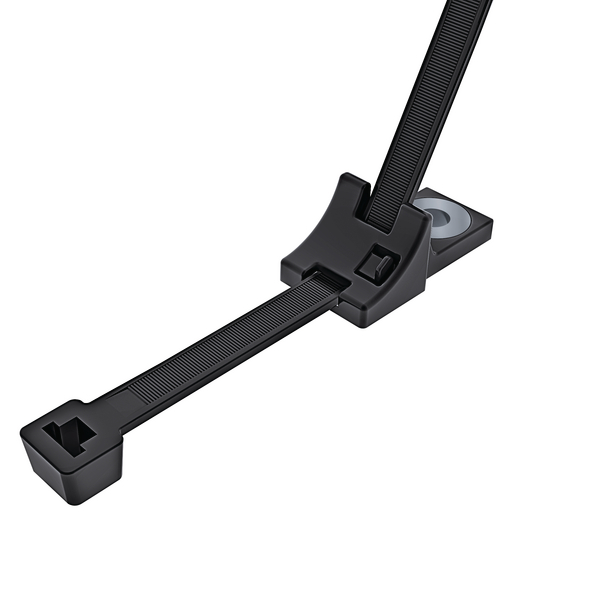

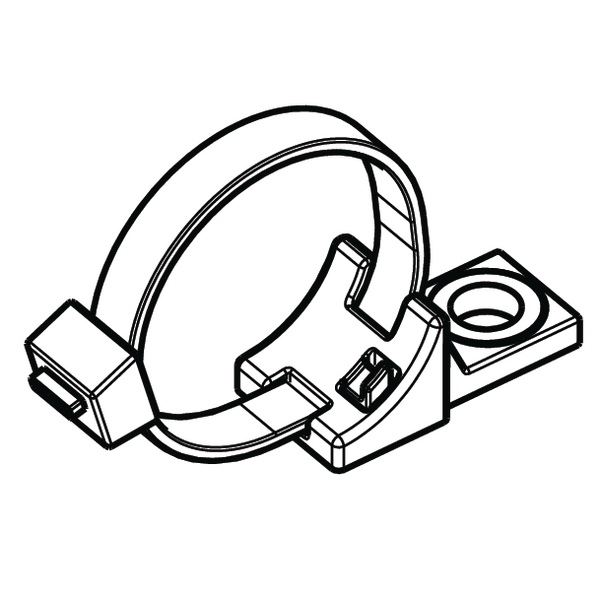

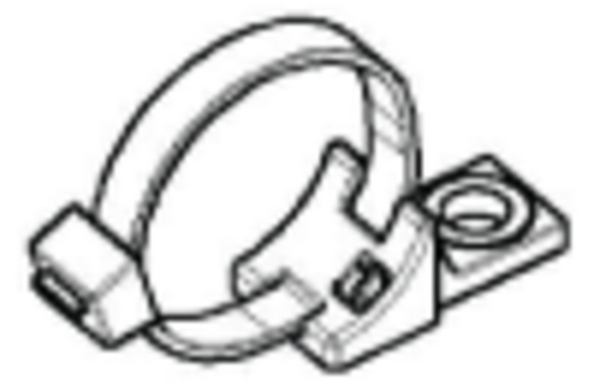

2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts T120RHDM8

HDM8-Series for M8-Screws, Article number: 156-00408

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing

Certifications & Approvals

Application

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

HDM8-Series for M8-Screws is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-Piece fixing tie 202x4.6 mm, for screws, PA66HIRHS/PA66HIR(S), black
Fixation Method Fixing hole
Identification Plate Position none
Mounting Screw Type M8
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T120RHDM8-PA66HIRHS-BK
Product Family HDM8-Series for M8-Screws
Product Group 2-Piece Fixing Ties for Heavy Duty Applications, for Screws or Bolts
Tie Closure plastic pawl
Type 156-00408
Variant Inside Serrated
Bundle ∅ max. 105mm
Bundle ∅ min. 15.0mm
Height (H) 16.0mm
Length (L) 390.0mm
Length (L2) 37.5mm
Min.Tensile Strength 535N
Strap Width max. (G) 7.8mm
Strap Width max. (G) (imperial) 0.31
Width (W) 7.6mm
Width (W2) 20.0mm
∅ max. 1. loop 100mm
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026426600
Packaging 1 - Height (m) 0.055m
Packaging 1 - Length (m) 0.427m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00404
Packaging 1 - Weight (kg) 1.0kg
Packaging 1 - Width (m) 0.172m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.595m
Packaging 3 - Qty 600
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0595
Packaging 3 - Weight (kg) 6.75kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 9600
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 129.0kg
Packaging 4 - Width (m) 0.8m
Weight 1.0kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
