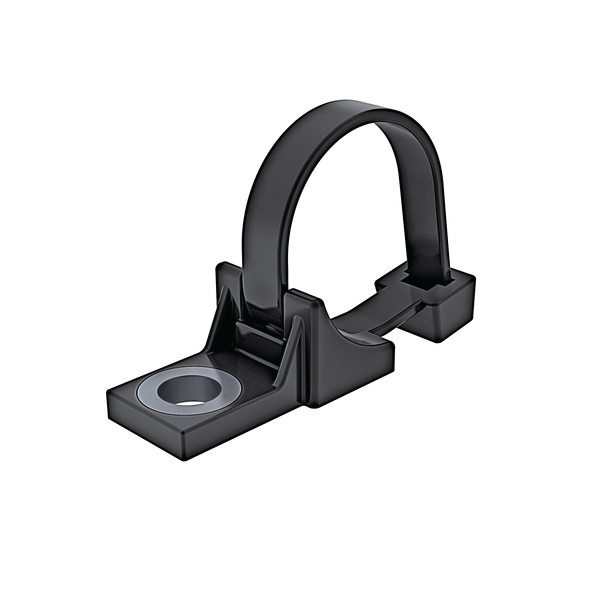

2-Piece Fixing Ties for Heavy Duty Applications, for Screws T50RHDM8

HDM8-Series for M8-Screws, Article number: 156-00412

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing

Certifications & Approvals

Application

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

HDM8-Series for M8-Screws is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) 2-piece fixing ties for heavy duty applications, for screws 200x4.6 mm, high impact modified / heat stabilised, black
Fixation Method Fixing hole
Identification Plate Position none
Mounting Screw Type M8
Pack Cont. 100pcs.
Package Quantity per Bag
PART DESCRIPTION T50RHDM8-PA66HIRHS-BK
Product Family HDM8-Series for M8-Screws
Product Group 2-Piece Fixing Ties for Heavy Duty Applications, for Screws
Tie Closure plastic pawl
Type 156-00412
Variant Inside Serrated
Bundle ∅ max. 50mm
Bundle ∅ min. 15.0mm
Height (H) 16.0mm
Length (L) 200mm
Length (L2) 37.5mm
Min.Tensile Strength 225N
Strap Width max. (G) 7.8mm
Strap Width max. (G) (imperial) 0.31
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 20.0mm
∅ max. 1. loop 50mm
Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB

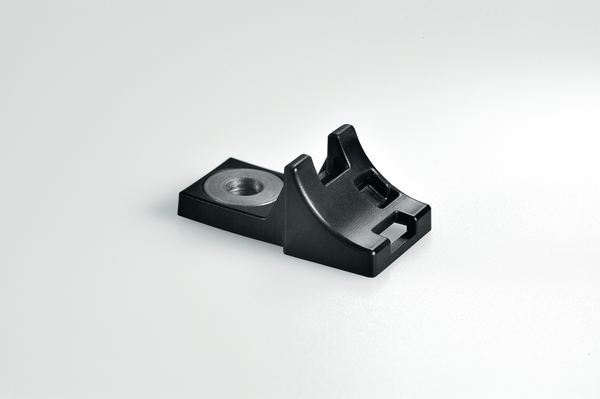

Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Hazardous good No
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
EAN / GTIN 4031026426648
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 2.65kg
Packaging 3 - Height (m) 0.195m
Packaging 3 - Length (m) 0.595m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0464
Packaging 3 - Weight (kg) 6.16kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 20000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 144.2kg
Packaging 4 - Width (m) 0.8m
Weight 2.65kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
