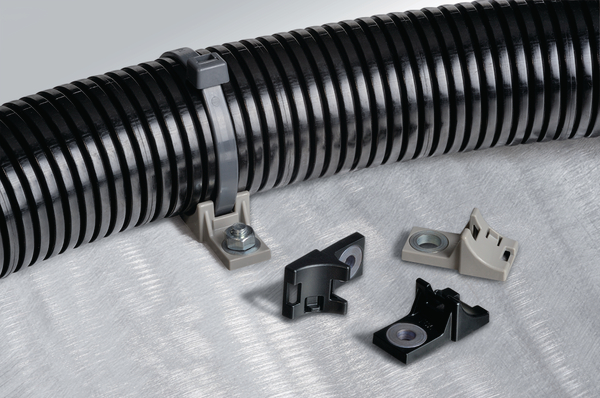

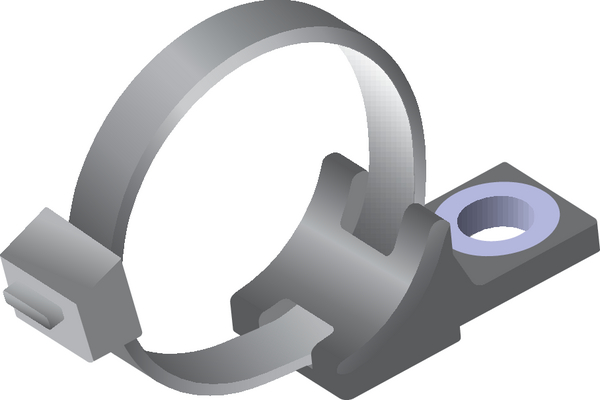

2-Piece Fixing Ties for Heavy Duty Applications, for Screws : T120SHDM8

HDM8-Series for M8-Screws, Article number: 156-00429

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing

Certifications & Approvals

Application

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

HDM8-Series for M8-Screws is suitable for following markets and industries

Application Tool MK6, MK9P, EVO9, MK9SST
Colour Grey (GY)
Fixation Method Fixing hole
Identification Plate Position none
Mounting Screw Type M8
Pack Cont. 500pcs.
Package Quantity per Box
PART DESCRIPTION T120SHDM8-PA46-GY
Product Family HDM8-Series for M8-Screws
Product Group 2-Piece Fixing Ties for Heavy Duty Applications, for Screws
Tie Closure plastic pawl
Type 156-00429
Variant Inside Serrated
Bundle ∅ max. 55mm
Bundle ∅ min. 15.0mm

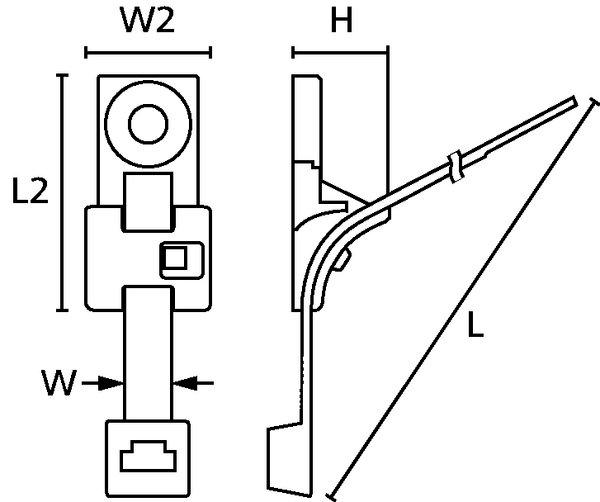

Height (H) 15.55mm
Length (L) 225mm
Length (L2) 38mm
Min.Tensile Strength 535N
Strap Width max. (G) 7.8mm
Strap Width max. (G) (imperial) 0.31
Width (W) 7.6mm
Width (W2) 20mm
∅ max. 1. loop 55mm
Cable Tie Polyamide 4.6 (PA46)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 4.6 (PA46)
Hazardous good No
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +150 °C
Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
EAN / GTIN 4031026426983
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 1.0kg
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.595m
Packaging 3 - Qty 1000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0595
Packaging 3 - Weight (kg) 10.5kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 189.0kg
Packaging 4 - Width (m) 0.8m
Weight 1.0kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
