Fixing tie for hole (round), inside serrated, Ø3.5-34.0mm, natural/grey, 500pcs.
Art.-No. 156-01191 | T30RFT5-PA46-NA/GY Details

This product is not available anymore.

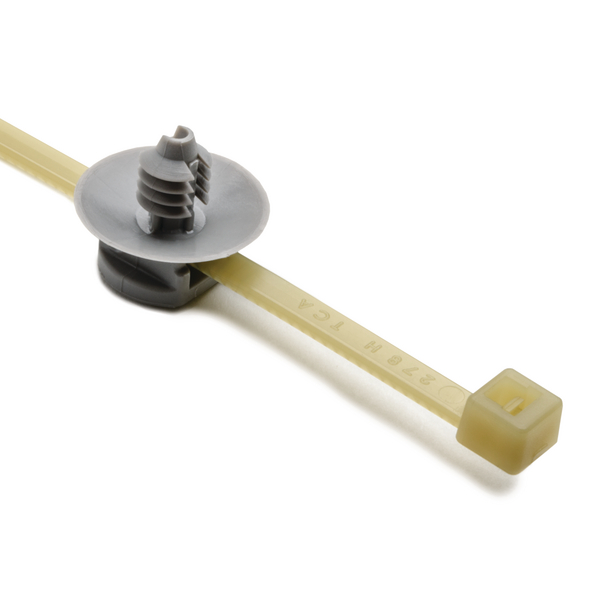

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises ingress of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry their simplicity and ease of use has seen these parts used in everything from aircraft, to switch-gear, to washing machines.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i
Cable Tie Polyamide 4.6 (PA46)
Colour Natural (NA), Grey (GY)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Foot Part Polyamide 4.6 (PA46)
Identification Plate Position none
Local order number T30RFT5
Material Polyamide 4.6 (PA46)
Pack Cont. 500pcs.
Package Content packed in Bag
PART DESCRIPTION T30RFT5-PA46-NA/GY
Product Family Fir tree parts FT5
Product Group 2-piece fixing ties with fir tree, with disc, for round holes
Short Description 2-Piece Fixing Tie 150x3.5 mm, with fir tree and disc, for round holes, natural/grey
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 34.0mm
Bundle ∅ 3.5-34.0mm
Bundle ∅ min. 3.5mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
Height (H) 1.2mm
Height (H2) 6.9mm

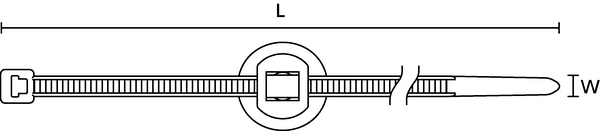

Length (L) 150mm
Length (L2) 11.6mm
Min.Tensile Strength 135N
Weight/Unit 0.0012kg
Width (W) 3.5mm
Width (W2) 9.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +150 °C
Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 4031026476735
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 0.621815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.03815kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 105.48kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
