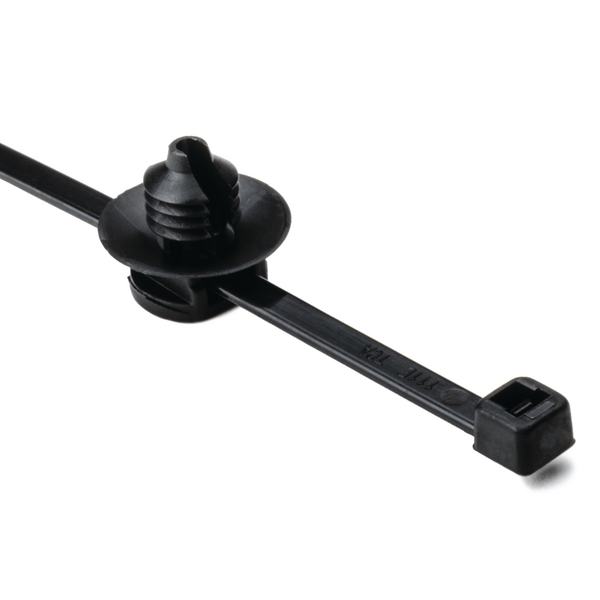

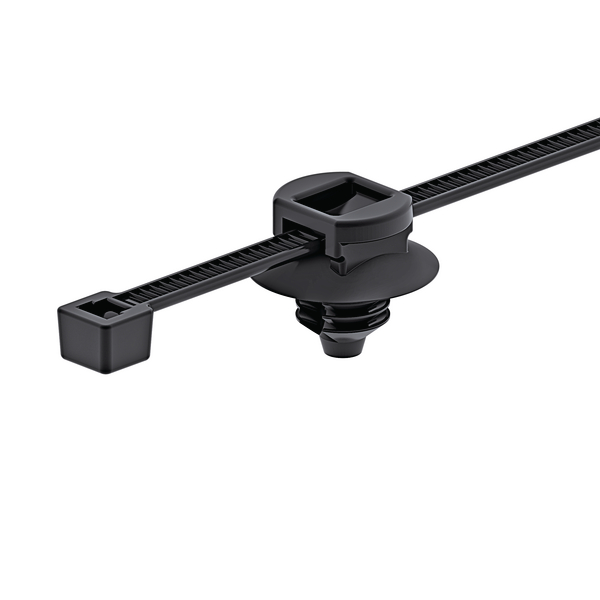

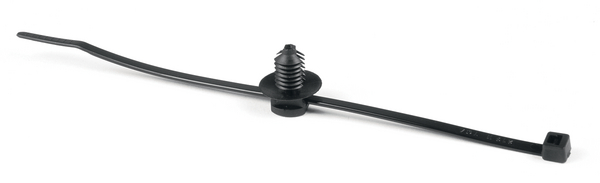

2-Piece Fixing Ties with Fir Tree, with Disc T30RFT6

Fir Tree Parts FT6, Article number: 150-77940

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK20, EVO7
Colour Black (BK)

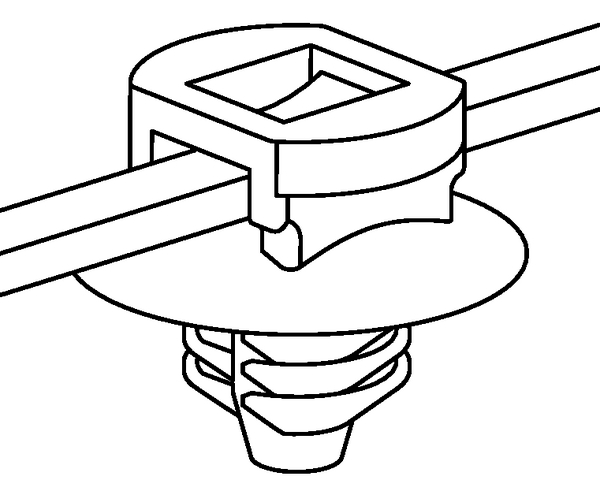

Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Description Short (BMEcat) (max. 150 characters) 2-Piece Fixing Tie with Fir Tree and Disc 148x3.6, black
Fixation Method Fir Tree
GLOBAL PART DESCRIPTION T30RFT6-PA66HS/PA66HIRHS-BK
Identification Plate Position none
Pack Cont. 500
Package Quantity per Bag
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc
Tie Closure plastic pawl
Type T30RFT6-MC5-BK-D1
Variant Inside Serrated
Bundle ∅ max. 35.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 1.1mm
Height (H2) 7.5mm

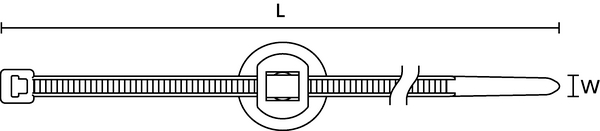

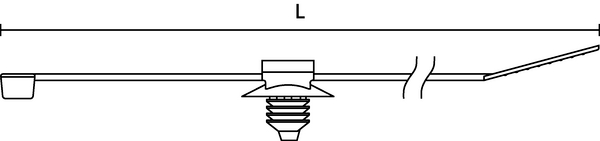

Length (L) 148.0mm
Length (L2) 11.6mm
Length (L3) 13.8mm
Min.Tensile Strength 135N
Panel Thickness max. 0.75–3.0mm
Width (W) 3.6mm
Width (W2) 9.0mm
Width (W3) 5.0mm
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94 HB
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
Specifications
EAN / GTIN 4031026121758
Packaging 1 - Qty 500
Packaging 1 - Weight (kg) 0.4500kg
Packaging 2 - Qty 1
Packaging 3 - Height (m) 0.37m
Packaging 3 - Length (m) 0.41m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0485
Packaging 3 - Weight (kg) 4.80kg
Packaging 3 - Width (m) 0.32m
Packaging 4 - Height (m) 1.11m
Packaging 4 - Length (m) 1.15m
Packaging 4 - Qty 90000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 0.932
Packaging 4 - Weight (kg) 126.0kg
Packaging 4 - Width (m) 0.73m
Weight 0.9kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121703
