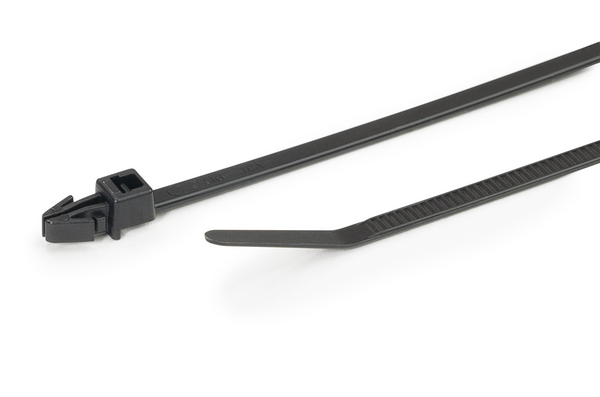

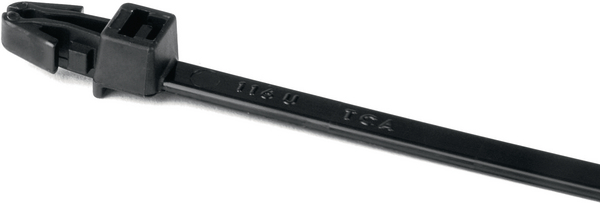

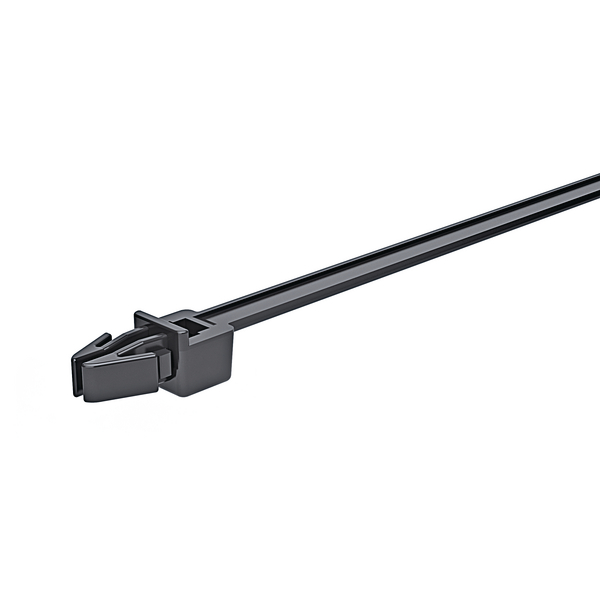

Fixing tie for hole (round), inside serrated, Ø1.6-32.0mm, black, 100pcs.
Art.-No. 111-85610 | T30RSF(U)-PA66HS-BK Details

  • Easy to assemble without the need for a tool

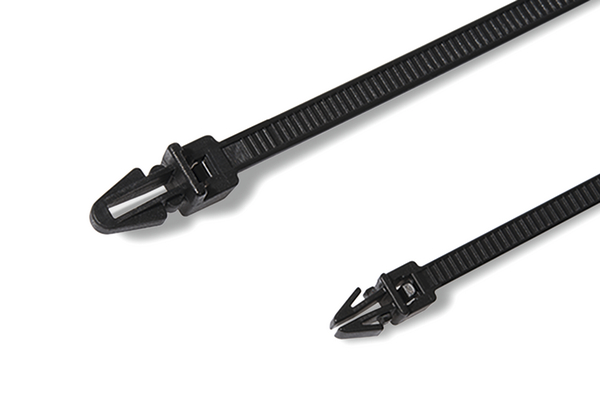

  • Fixing tie with arrowhead without wings
  • Arrowhead simply locks into place
  • Cable tie head always situated in defined position

Request your individual offer now

Application The arrowhead design allows these ties to be used in areas with limited space.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Local order number T30RSF(U).HB3P
Material Polyamide 6.6, heat stabilised (PA66HS)
Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION T30RSF(U)-PA66HS-BK
Product Family T30RSF(U) for max. bundle diameter 31.0 mm
Product Group 1-Piece Fixing Ties with Arrowhead
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 32.0mm
Bundle ∅ 1.6-32.0mm
Bundle ∅ min. 1.6mm
for Hole ∅ (FH) 4.7 - 5.6 mm
for Panel Thickness min - max 0.8 - 2.1 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 5.8mm

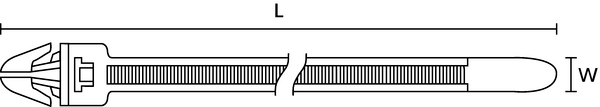

Length (L) 158.0mm
Min.Tensile Strength 136N
Panel Thickness max. 0.75 – 2.1mm
Thickness (T) 1.2mm
Weight/Unit 0.0009kg
Width (W) 3.6mm
CE Certification Yes
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL-File Number E64139
Country of Origin MX
Customs Number 39269097
GTIN-13 / EAN 4031026205649
Packaging 1 - Height (m) 0.027m
Packaging 1 - Length (m) 0.191m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00085
Packaging 1 - Weight (kg) 0.09kg
Packaging 1 - Width (m) 0.164m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.511m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0318
Packaging 3 - Weight (kg) 5.0kg
Packaging 3 - Width (m) 0.311m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 121.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
