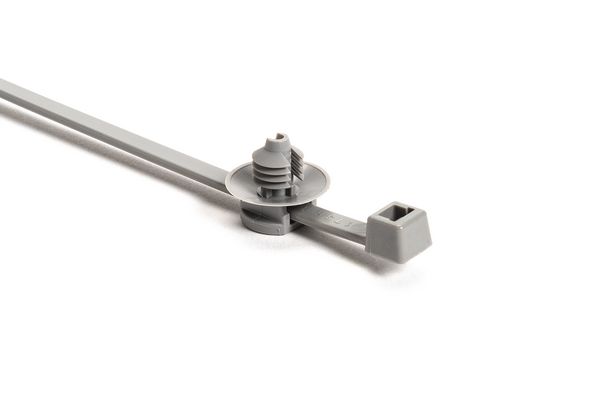

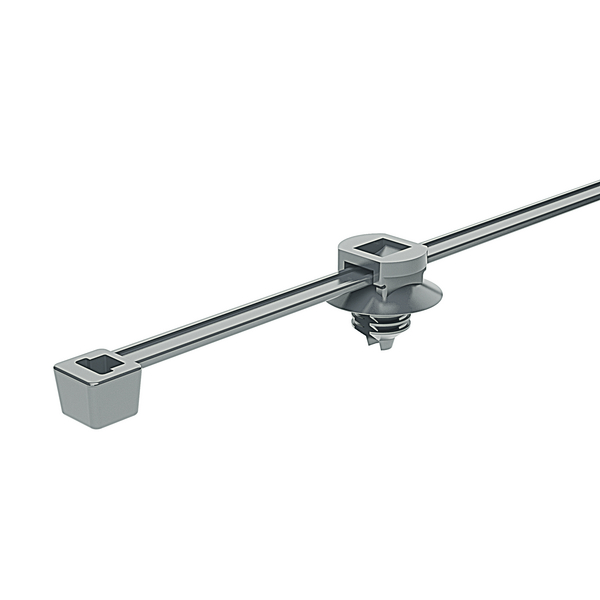

2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes : T50RFT6

2-piece fixing ties with fir tree, with disc, for round holes 202x4.6 mm, pa46, grey, Article number: 156-01693

Features

  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Fir Tree Parts FT6 is suitable for following markets and industries

Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9
Colour Grey (GY)
Description These two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.
Fixation Method Fir Tree
Fixing Hole Shape Circular
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per Bag
PART DESCRIPTION T50RFT6-PA46-GY
Product Family Fir Tree Parts FT6
Product Group 2-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Short Description 2-piece fixing ties with fir tree, with disc, for round holes 202x4.6 mm, pa46, grey
Tie Closure plastic pawl
Type T50RFT6_PA46_GY
Variant Inside Serrated
Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.4 - 7.1 mm
for Panel Thickness min - max 0.8 - 3 mm
Height (H2) 7.5mm

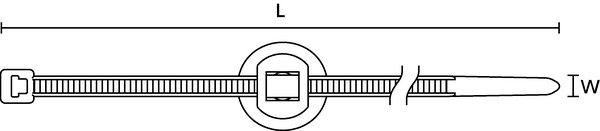

Length (L) 202mm
Min.Tensile Strength 225N
Panel Thickness max. 0.75 - 3.0mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Cable Tie Polyamide 4.6 (PA46)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 4.6 (PA46)
Hazardous good No
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +150 °C
Operating Temperature Foot Part (Metric) -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
EAN / GTIN 4031026576275
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01422
Packaging 1 - Weight (kg) 1.062635kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 9.32108kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 132.84kg
Packaging 4 - Width (m) 0.8m
Weight 1.0335kg
ETIM 6.0 EC000046
ETIM 7.0 Key EC000046
