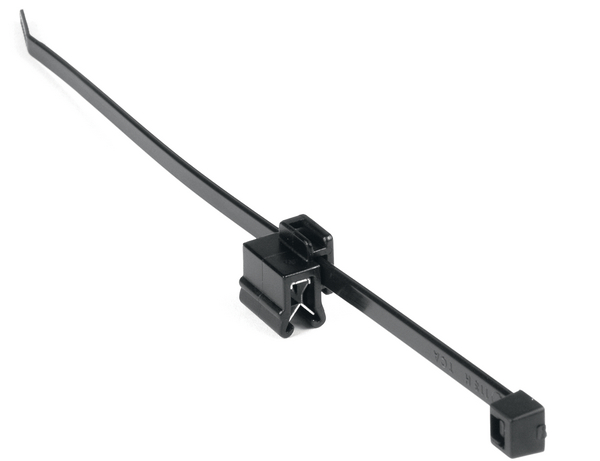

Fixing tie for edge, outside serrated, Ø4.0-45.0mm, black, 100pcs.
Art.-No. 156-03064 | T50ROSEC5B-PA66W-BK Details

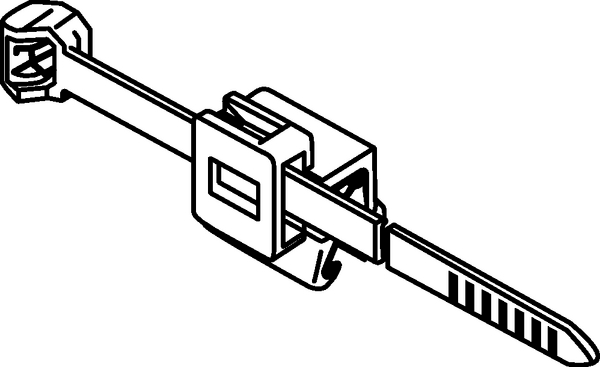

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm
Package size

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)

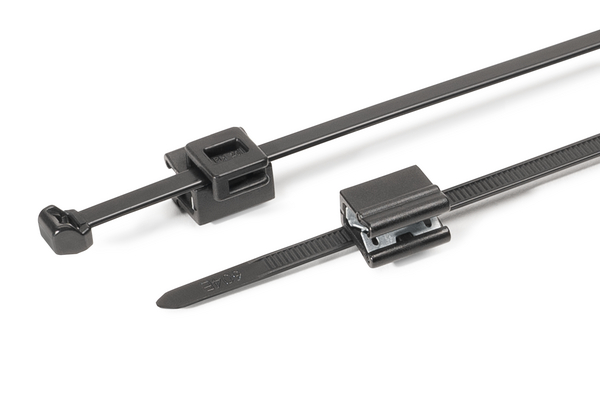

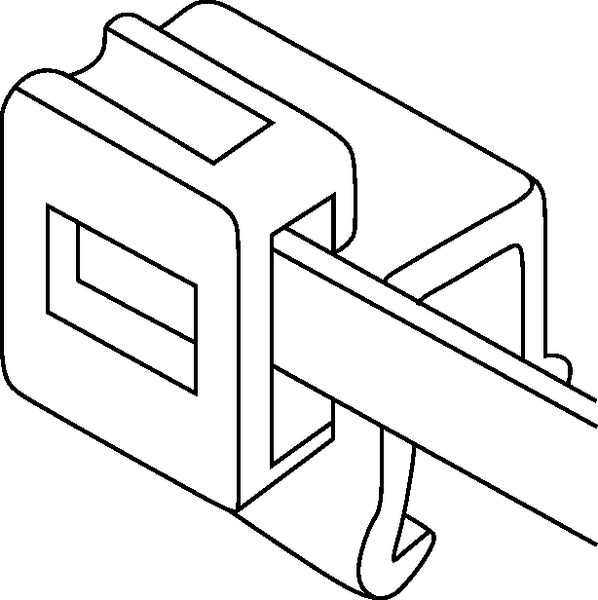

Description Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp. Different Edge Clip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge. The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary. Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the Edge Clip family provides an excellent fastening solution.
Fixation Method EdgeClip, sideway, assembled, 2 piece
Identification Plate Position none
Local order number T50ROSEC5B-PA66W-BK-C1
Material Polyamide 6.6, UV-resistant (PA66W)
PART DESCRIPTION T50ROSEC5B-PA66W-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Product Group 2-piece fixing ties for edges
Releasable Closure (Yes/No) No
Type T50ROSEC5B
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ min. 4.0mm
Height (H) 1.3mm
Height (H2) 15.5mm
Length (L) 200mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Weight/Unit 0.002814kg
Width (W) 4.6mm
Width (W2) 10.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026648002
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 100
Packaging 1 - Weight (kg) 0.295262kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Qty 4000
Packaging 3 - Weight (kg) 12.63048kg
Packaging 4 - Height (m) 1.248m
Packaging 4 - Qty 48000
Packaging 4 - Weight (kg) 172.632kg
UNSPSC Key 39121703
