09/10/2024

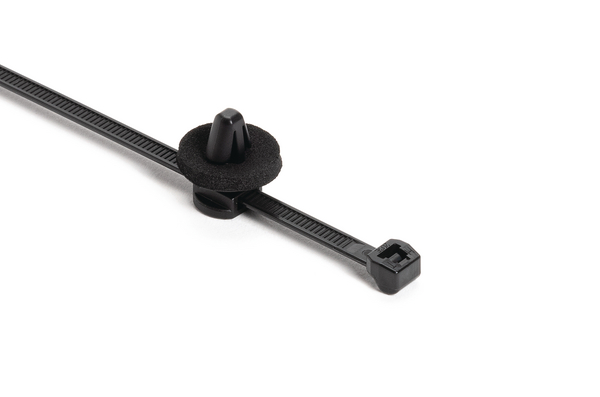

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Art.-No. 150-37799 | T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK Details

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions
  • Seal protects against splash water
Show more

Request your individual offer now

Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method arrowhead
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Key product features sealed
Local order number T50ROSSFT6.5163MD-MC5-BK-D1
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSSFT6.5 16-3MD-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family for round holes, sealed
Product Group 2-Pieces Fixing Ties with Arrowhead, with Disc, sealed
Short Description Fixing Tie 200x4.6 mm, 2-piece, arrowhead, heat stabilised, high impact modified, black
Tie Closure plastic pawl
Type T50ROSSFT6.5 16-3MD
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 4.0-45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
Height (H) 1.3mm
Height (H2) 10mm
Length (L) 200mm
Length (L2) 11.6mm
Min.Tensile Strength 225N
Panel Thickness max. 2.5 - 3.0mm
Weight/Unit 0.002041kg
Width (W) 4.6mm
Width (W2) 9.0mm
for Hole ∅ (FH) 6.1 - 7.0 mm
for Panel Thickness min - max 2.5 - 3 mm
for Panel Thickness min - max 0.1 - 0.1 "
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026209685
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.03555
Packaging 1 - Weight (kg) 1.049635kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.11781kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 106.404kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
