Fixing tie for hole (round), outside serrated, Ø4.0-45.0mm, black, 500pcs.
Art.-No. 155-42002 | T50ROSSFT6.5S-16-2MD-PA66HS/PA66HIRHS-BK Details

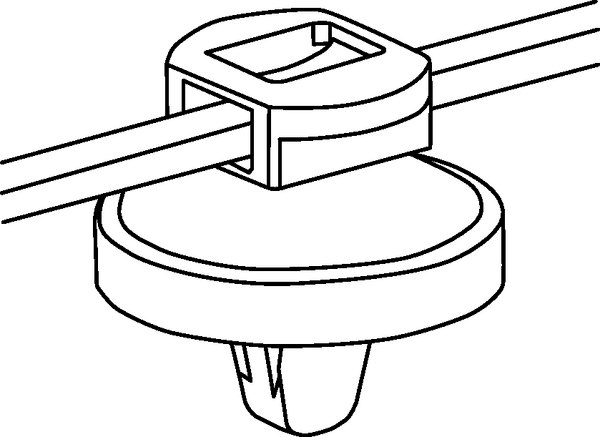

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions
  • Seal protects against splash water
  • Versions "SRAH" are coming with a seal made from thermoplastic elastomer (TPE)
Show more

Request your individual offer now

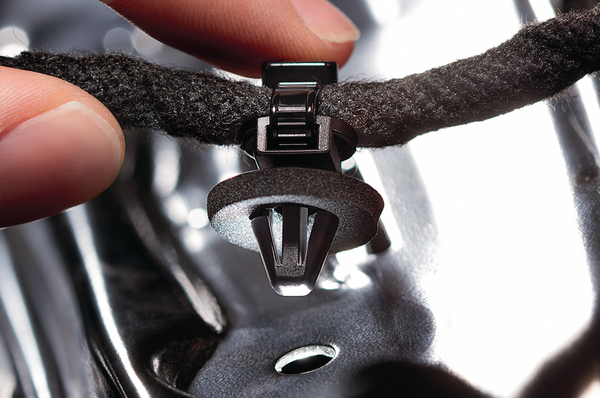

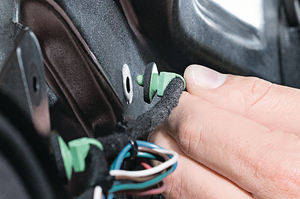

Application The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Colour Black (BK)
Fixation Method arrowhead
Identification Plate Position none
Key product features sealed
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50ROSSFT6.5S-16-2MD-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family for round holes, sealed
Product Group 2-piece fixing ties with arrowhead, with disc
Short Description 2-Piece fixing tie 200x4.6 mm, with arrowhead, heat stabilised, black
Tie Closure plastic pawl
Type T50ROSSFT6.5S-16-2MD
Variant Outside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 4.0-45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm

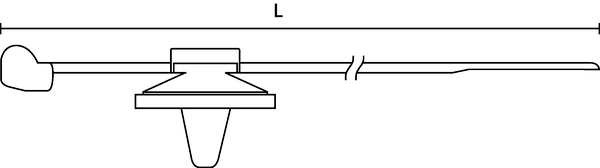

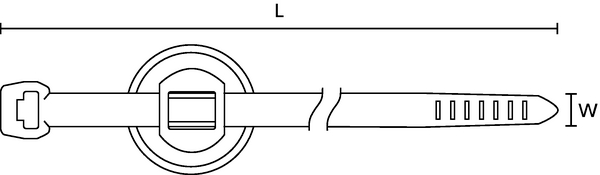

Length (L) 200mm
Min.Tensile Strength 225N
Thickness (T) 1.3mm
Weight/Unit 0.001791kg
Width (W) 4.6mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.7 - 1.2 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026218243
Packaging 1 - Height (m) 0.075m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0105
Packaging 1 - Weight (kg) 0.924635kg
Packaging 1 - Width (m) 0.35m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.21708kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 48000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 119.592kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
