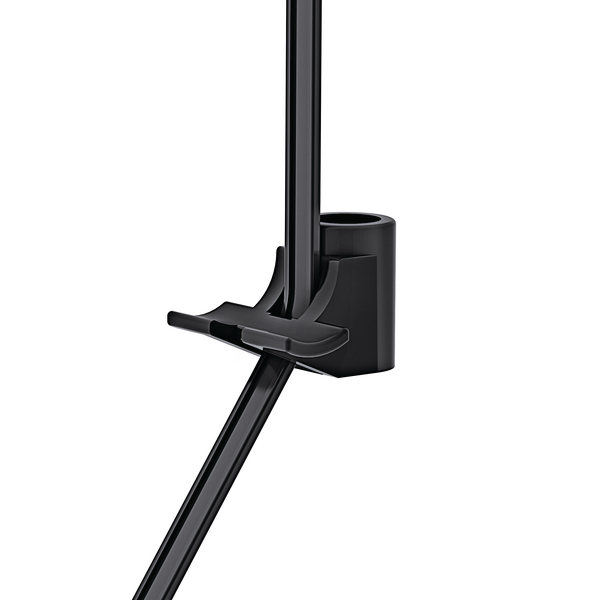

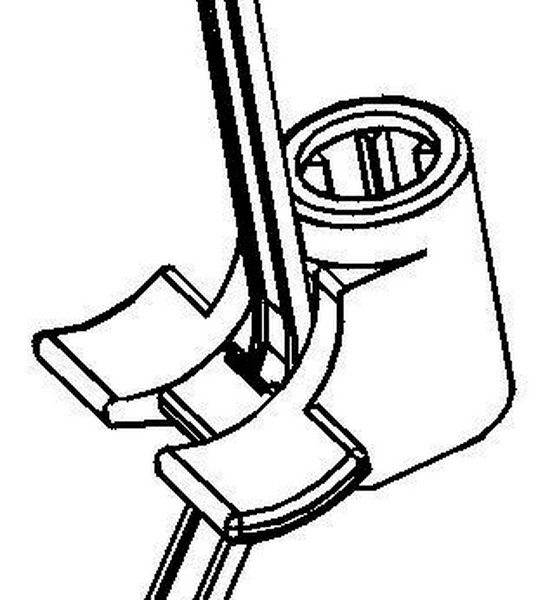

Fixing tie for stud, inside serrated, Ø2.0-45.0mm, black, 500pcs.
Art.-No. 150-21291 | T50RSBS5-PA66HS-BK Details

  • Pre-assembled with cable tie and weld stud mounting base
  • Quick and easy installation
  • Head rotates into perfect position for installation
  • 'Soft-push' design for tool-free installation
  • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
  • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
  • SB5 allow lateral tolerance for fixing point
Show more

Request your individual offer now

Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method Weld Stud Fixing
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Identification Plate Position none
Local order number T50RSBS5
Material Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION T50RSBS5-PA66HS-BK
Pack Cont. 500pcs.
Package Content packed in pcs.
Product Family SBS5 Series
Product Group 2-Piece Fixing Ties for Weld Studs
Releasable Closure (Yes/No) No
Short Description 2-Piece Fixing Tie for Weld Studs 200x4.6 black
Tie Closure plastic pawl
Type T50RSBS5
Variant Inside Serrated
Bundle Diameter max (metric) 45.0mm
Bundle ∅ 2.0-45.0mm
Bundle ∅ min. 2.0mm
Height (H) 1.2mm
Height (H2) 15mm
Length (L) 200mm
Length (L2) 20.0mm
Min Stud Length 14.2mm
Min.Tensile Strength 225N
Stud ∅ 5.0 mm
Thickness (T) 1.2mm
Weight/Unit 0.0026kg
Width (W) 4.6mm
Width (W2) 20.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin SG
Customs Number 39269097
GTIN-13 / EAN 4031026119755
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.385m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01328
Packaging 1 - Weight (kg) 1.300001kg
Packaging 1 - Width (m) 0.345m
Packaging 3 - Height (m) 0.218m
Packaging 3 - Length (m) 0.599m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0522
Packaging 3 - Weight (kg) 5.950004kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.234m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.185
Packaging 4 - Weight (kg) 140.0kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
