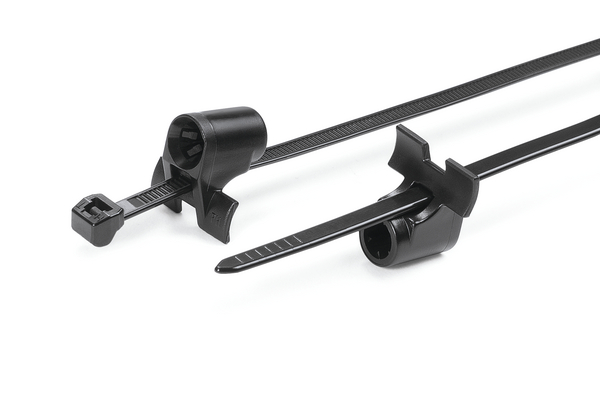

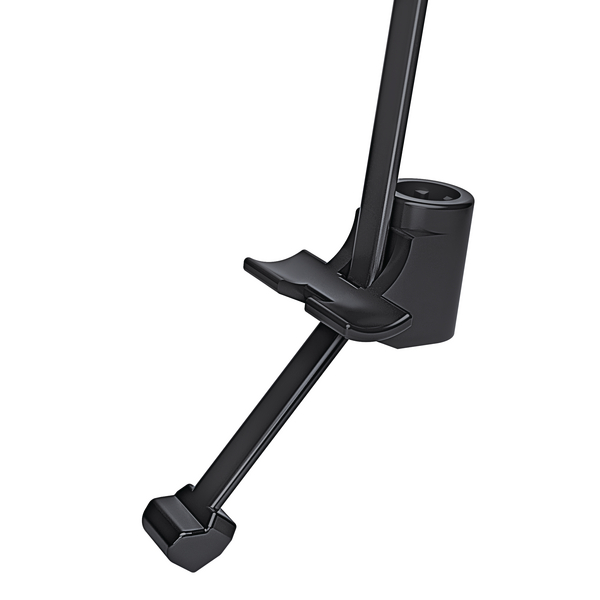

Fixing tie for stud, outside serrated, ⌀4.0-31.0mm, black, 500pcs.
Art.-No. 156-00079
| T50SOSSBS5-PA66HS/PA66-BK
|
Copied
- Pre-assembled with cable tie and weld stud mounting base
- Quick and easy installation
- Head rotates into perfect position for installation
- 'Soft-push' design for tool-free installation
- Mushroom-shaped SBH handles insulation or a sound-deadening blanket
- SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
- SB5 allow lateral tolerance for fixing point
Request your individual offer now
Request quote
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| Colour | Black (BK) |
| Fixation Method | Weld Stud Fixing |
| Foot Part | Polyamide 6.6 (PA66) |
| Identification Plate Position | none |
| Local order number | T50SOSSBS5.MC1.BK.D1 |
| Material | Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6 (PA66) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SOSSBS5-PA66HS/PA66-BK |
| Package Content | 500pcs. |
| Package Content packed in | Bag |
| Product Family | SBS5 Series |
| Product Group | 2-Piece Fixing Ties for Weld Studs |
| Tie Closure | plastic pawl |
| Type | T50SOSSBS5 |
| Variant | Outside Serrated |
| Weight/Unit | 0.00225kg |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026253480 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.35m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0102375m³ |
| Packaging 1 - Weight (kg) | 1.154135kg |
| Packaging 1 - Width (m) | 0.325m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.74481kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 113.928kg |
| Packaging 4 - Width (m) | 0.8m |
