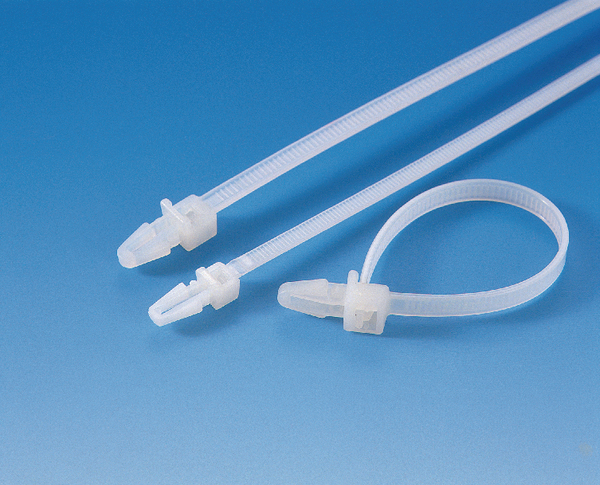

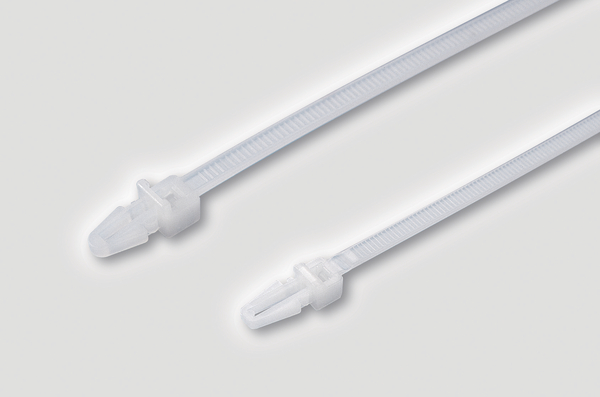

Fixing tie for hole (round), inside serrated, Ø3.0-44.0mm, natural, 500pcs.
Art.-No. 111-85799 | T50RSF(E)-PA66-NA Details

  • Easy to assemble without the need for a tool
  • Fixing tie with arrowhead without wings
  • Arrowhead simply locks into place
  • Cable tie head always situated in defined position

Request your individual offer now

Application The arrowhead designs allows these ties to be used in areas with limited space.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i
Colour Natural (NA)
Fixation Method arrowhead
Identification Plate Position none
Local order number T50RSF.NN6P
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in pcs.
PART DESCRIPTION T50RSF(E)-PA66-NA
Product Family T50RSF(E) for max. bundle diameter 50,0 mm
Product Group 1-Piece Fixing Ties with Arrowhead
Releasable Closure (Yes/No) No
Short Description Fixing Tie 210x4.6 natural
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (Metric) 44.0mm
Bundle ∅ 3.0-44.0mm
Bundle ∅ min. 3.0mm
for Hole ∅ (FH) 6.2 - 6.4 mm
for Panel Thickness min - max 2.9 - 3 mm
for Panel Thickness min - max 0.1 - 0.1 "

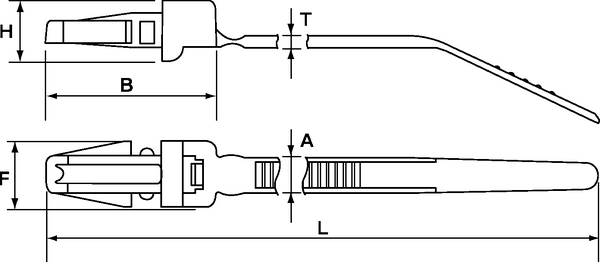

Height (H) 8.0mm
Length (L) 210mm
Min.Tensile Strength 225N
Panel Thickness max. 2.9 – 3.0mm
Thickness (T) 1.2mm
Weight/Unit 0.001569kg
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL Type 11
UL-File Number E64963
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660326059
Packaging 1 - Height (m) 0.078m
Packaging 1 - Length (m) 0.355m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00734
Packaging 1 - Weight (kg) 0.784501kg
Packaging 1 - Width (m) 0.265m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 13.513016kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 96000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 183.156kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
