Fixing tie for hole (round), inside serrated, Ø5.0-49.0mm, black, 500pcs.
Art.-No. 150-37792 | T50RSFT6.5 16-3-PA66HS/PA66HIRHS-BK Details

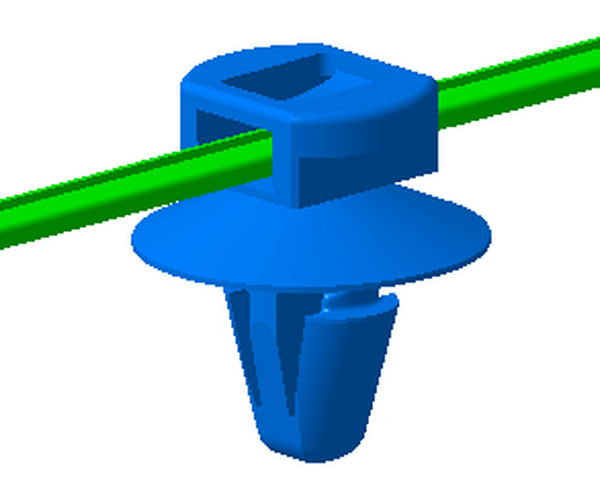

  • Pre-assembled 2-piece fixing tie with arrowhead foot part
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Show more

Request your individual offer now

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
Application Tool ProCut 9 no battery, MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9SP, EVO9i, EVO9iSP
Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
Colour Black (BK)
Fixation Method arrowhead
Foot Part Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Identification Plate Position none
Local order number T50RSFT6.5163-MC5-BK-D1
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION T50RSFT6.5 16-3-PA66HS/PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family 2-Piece Fixing Ties with Arrowhead, with Disc, for round holes
Product Group 2-piece fixing ties with arrowhead, with disc
Short Description Fixing Tie 200x4.6 mm, 2-piece, arrowhead, heat stabilised, high impact modified, black
Tie Closure plastic pawl
Type T50RSFT6.5 16-3
Variant Inside Serrated
Bundle Diameter max (metric) 49.0mm
Bundle ∅ 5.0-49.0mm
Bundle ∅ min. 5.0mm
Disc ∅ 16.0mm
Height (H) 1.2mm
Height (H2) 10mm
Length (L) 200mm
Length (L2) 11.6mm
Min.Tensile Strength 222N
Weight/Unit 0.0018kg
Width (W) 4.6mm
Width (W2) 9.0mm
for Hole ∅ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 2.5 - 3.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026203485
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 1.079135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 7.29481kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 108.528kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
