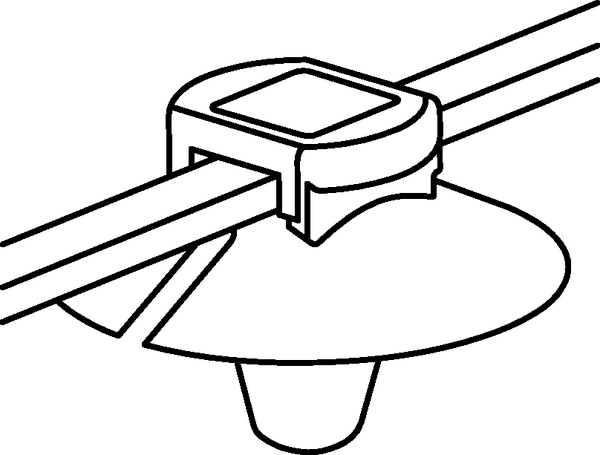

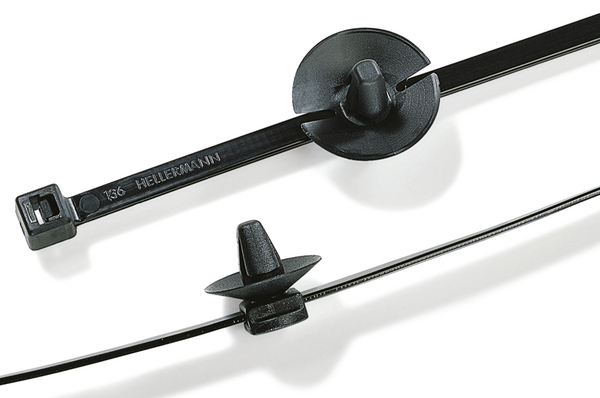

2-piece fixing ties with arrowhead, with disc : T50RSFT6.5
2-Piece fixing tie 200x4.6 with arrowhead, with disc, PA66HS, blackArticle number: 156-01697
Features
- Pre-assembled 2-piece fixing tie with arrowhead foot part
- Cable tie head can be moved after bundling
- Easy to assemble without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
Certifications & Approvals
Application
Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear and white goods manufacturing.
More products in this product group
2-piece fixing ties with arrowhead, with disc >| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50RSFT6.5-PA66HS-BK |
| Product Family | 2-Piece Fixing Ties with Arrowhead, with Disc, for round holes |
| Product Group | 2-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Short Description | 2-Piece fixing tie 200x4.6 with arrowhead, with disc, PA66HS, black |
| Tie Closure | plastic pawl |
| Type | T50RSFT6.5_PA66HS_BK |
| Variant | Inside Serrated |
| Bundle ∅ max. | 45.0mm |
| Bundle ∅ min. | 2mm |
| Disc ∅ | 22.4mm |
| for Hole ∅ (FH) | 6.3 - 6.7 mm |
| for Panel Thickness min - max | 0.7 - 2 mm |
| Height (H) | 1.2mm |
| Height (H2) | 7.7mm |

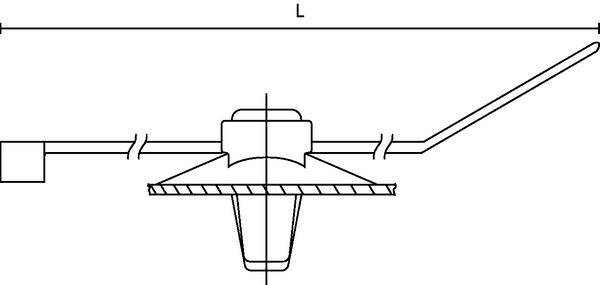

| Length (L) | 200mm |
| Length (L2) | 11.6mm |
| Min.Tensile Strength | 225N |
| Thickness (T) | 1.2mm |
| Width (W) | 4.6mm |
| Width (W2) | 9.0mm |
| Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Foot Part | Polyamide 6.6, heat stabilised (PA66HS) |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026576329 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.395m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01778m³ |
| Packaging 1 - Weight (kg) | 1.071635kg |
| Packaging 1 - Width (m) | 0.45m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 7.24981kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 107.988kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 1.0425kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
