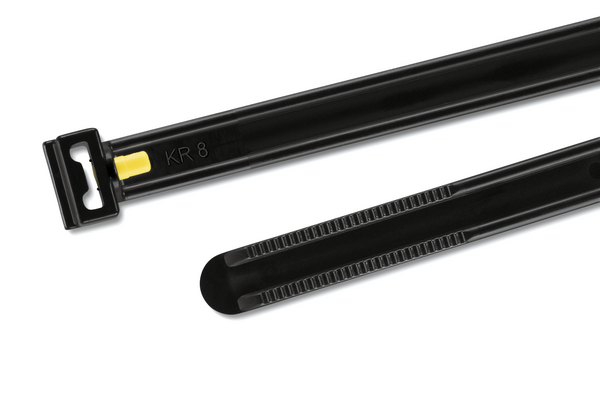

Cable tie locked by glass fibre pin : KR8/43
Cable Tie locked by glass fibre pin 430x8 mm HS-blackArticle number: 121-74360
Features
- Cable tie without serration to avoid any damage to cables

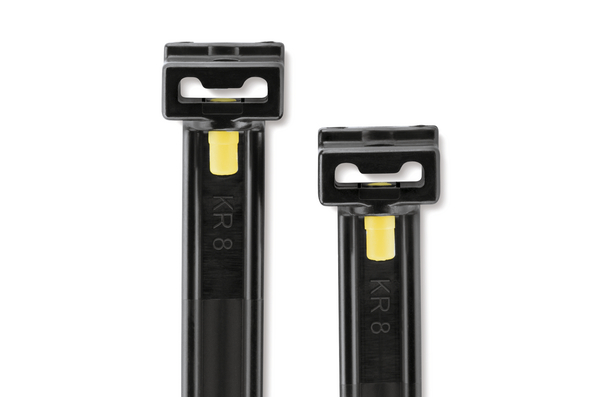

- Strap is locked into place with a glass-fibre reinforced pin
- Very secure and vibration resistant fixing
- Available in various materials, colours and almost every length
- Cable ties from PA12 are highly resistant to chemicals, impact and UV light
- KR-ties up to 426 mm are made as one piece
- For assembly a special KR-tool is needed
Certifications & Approvals
Application
This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.
More products in this product group
Cable tie locked by glass fibre pin >| Application Tool | KR6/8, KR8PNSE |
| Brand Family | KR-Series |
| Colour | Black (BK) |
| Colour (short) | BK |
| Discontinued Globally | NO |
| EDP Text Short Germany | KR8/43-HS-BK-L1 |
| Fixation Method | Cable Tie |
| Free for general sale | YES |
| Identification Plate Position | none |
| Local Product Manager | Richard Rands (richard.rands@hellermanntyton.co.uk) United Kingdom |
| Manufacturer Type | KR8/43-PA66HS-BK (50) |
| Manufacturing PM | Artur Hofer (artur.hofer@HellermannTyton.de) Germany |
| Pack Cont. | 50pcs. |
| Package Quantity per | pcs. |
| PART DESCRIPTION | KR8/43-PA66HS-BK |
| Product family | Cable Ties |
| Product Family | KR-Series, 1-Piece |
| Product Group | Cable tie locked by glass fibre pin |
| Product Subfamily | Cable ties without serration |
| Project Number (GPN) | NT435-02 |
| Releasable Closure (Yes/No) | No |
| Short Description | Cable Tie locked by glass fibre pin 430x8 mm HS-black |
| Tie Closure | fibreglass pin |
| Transparent (Yes/No) | No |
| Variant | No Serration |
|
|
|
| Bundle ∅ max. | 105mm |
| Bundle ∅ min. | 8.0mm |
| ECl@ss Key | 27140702 |
| Length (L) | 426mm |
| Min.Tensile Strength | 785N |
| Thickness (T) | 2.4mm |
| Width (W) | 8.0mm |
| Approval MIL | false |
| Approval UL-Listed (Yes/No) | false |
| Approval VG | false |
| ELV compliant Dir. Art. 4 (2) | YES |
| EN 45545-2 Results | R24 HL3 |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Material | PA66HS |
| Material Classification | Plastic (PL) |
| Material Surface | untreated |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| REACH compliant Regu. Art. 33 | YES |
| Specifications |
|
| Specifications | EN 45545-2 + A1 |
| UV-resistant acc. to ASTM D6779 (Yes/No) | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| EAN / GTIN | 4031026206141 |
| Global Customs Number | 392690 |
| Label Design | Bundling_Securing |
| Label Type | HT Standard 75x100 |
| Layers of Europallet | 5 |
| Order Unit | pcs. |
| Package dimensions calculated (LengthxWidthxHeight) | |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01664m³ |
| Packaging 1 - Weight (kg) | 0.298723kg |
| Packaging 1 - Width (m) | 0.32m |

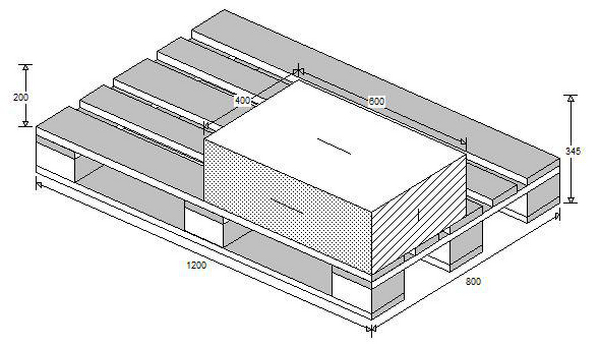

| Packaging 3 - Height (m) | 0.195m |
| Packaging 3 - Length (m) | 0.595m |
| Packaging 3 - Qty | 1500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0464m³ |
| Packaging 3 - Weight (kg) | 9.82169kg |
| Packaging 3 - Width (m) | 0.4m |

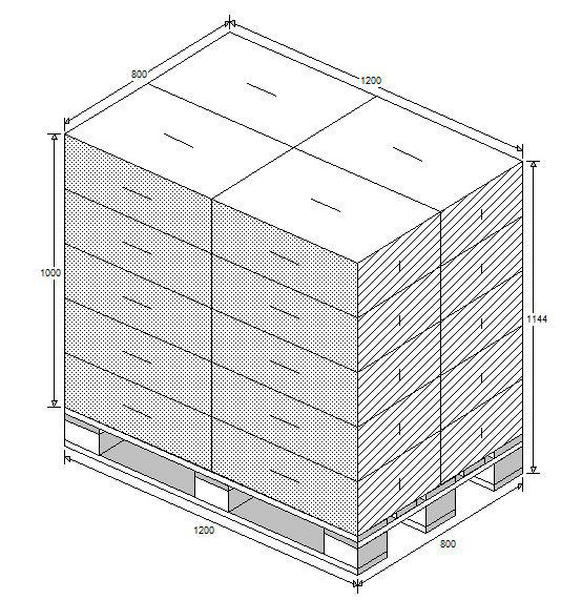

| Packaging 4 - Height (m) | 1.144m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.098m³ |
| Packaging 4 - Weight (kg) | 217.6kg |
| Packaging 4 - Width (m) | 0.8m |
| Packaging Content SKU Unit | pcs. |
| PL0 Weight without Packaging | 0.0057kg |
| PL1 UNS | 030-00653 |
| PL1 Weight Packaging (Net) | 0.285kg |
| PL3 UNS | 031-10091 |
| PL3 Weight Packaging (Net) | 8.96169kg |
| PL4 UNS | 031-90193 |
| PL4 Weight Packaging (Net) | 196.6kg |
| Product Label Dimension 1 | L: 426 mm / |
| Product Label Dimension 2 | W: 8.0 mm / |
| Status Packaging / Logistics Data | 2020-12-18 |
| Weight | 0.285kg |
| Distrelec order code | 30087261 |
| MITEGRO order codes | 4833241, 10148607 |
| Competitor Match Codes | Ty-Fast, a-collection, Bizline, Elematic, Newlec, Panduit, Richco, Sapi Selko, Sormat, Thomas&Betts, T&B, Wurth |
| Customer Order Codes (merged) | 0016528, 10148607, 1665813, 2490215, 2492701122, 2591526, 30.82.34, 30087261, 42P1592, 4833241, E06315, HLR12174360 |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| shown on website | Germany, France, Finland, Spain, Denmark, Sweden, Poland, Norway, Netherlands, Italy, Russia, Austria, Turkey Rep., Singapore (English), Automotive (German), com Internet, China (English), Publication Master, China (Mandarin), Brazil, Great Britain, Automotive (English), HTData (English), Argentina, CEE (English) |
