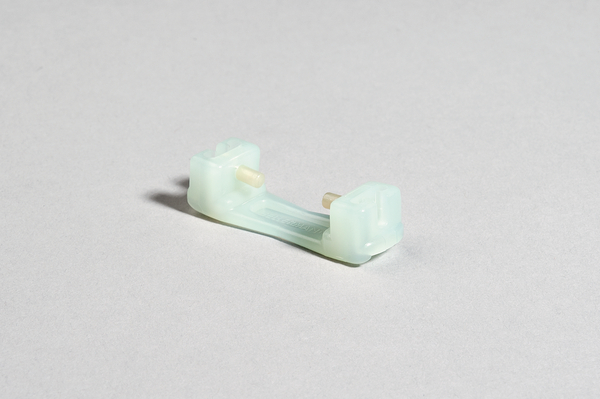

Cable Tie locked by glass fibre pin KR8/C5

KR-Series, endless, Article number: 121-58551

Features

  • Cable tie without serration to avoid any damage to cables
  • Strap is locked into place with a glass-fibre reinforced pin
  • Very secure and vibration resistant fixing
  • Endless strap (50 m per reel) and separate heads for large bundle diameters
  • Offers high flexibility and can be cut to suit any bundle
  • For assembly a special KR-tool is needed

Certifications & Approvals

Application

This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.

KR-Series, endless is suitable for following markets and industries

Application Tool KR6/8, KR8PNSE
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Connector Clip for Endless Cable Tie 38x11.7 PA66HS natural
Fixation Method Cable Tie
GLOBAL PART DESCRIPTION KR8/C5-PA66HS-NA
Pack Cont. 200pcs.
Package Quantity per pcs.
Product Family KR-Series, endless
Product Group Cable Tie locked by glass fibre pin
Releasable Closure (Yes/No) No
Tie Closure fibreglass pin
Variant No Serration
Length (L) 38.0mm
Width (W) 11.7mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
EAN / GTIN 4031026114033
Packaging 1 - Height (m) 0.045m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00184
Packaging 1 - Weight (kg) 0.369137kg
Packaging 1 - Width (m) 0.315m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.878425kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 100000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 218.5kg
Packaging 4 - Width (m) 0.8m
Weight 0.344kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
