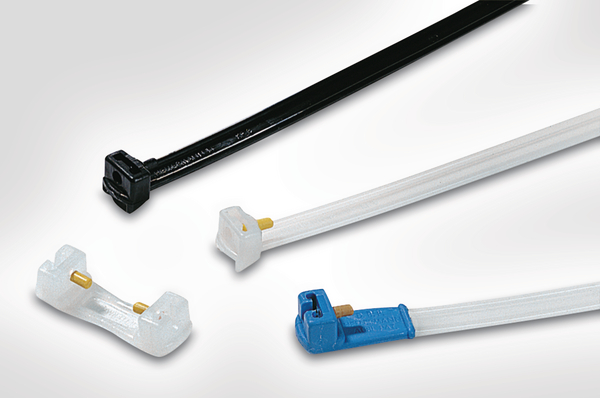

Cable tie locked by glass fibre pin : KR8/S1
Endless Cable Tie Strap System 50m x 8mm PA66HS naturalArticle number: 121-98151
Features
- Cable tie without serration to avoid any damage to cables

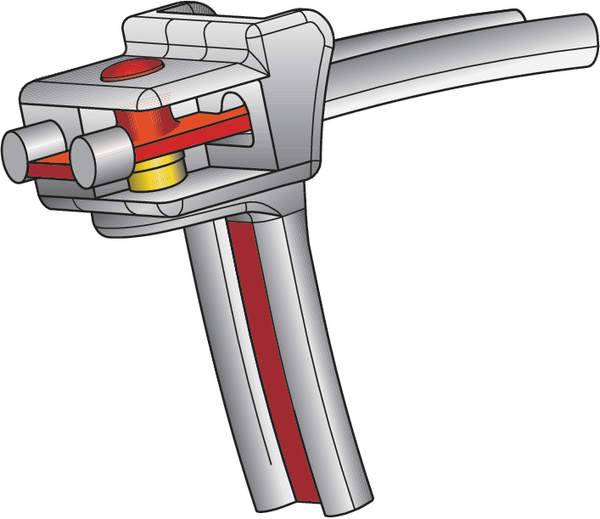

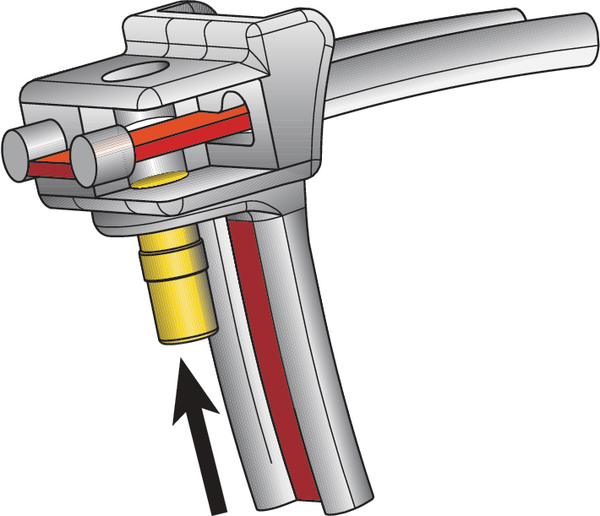

- Strap is locked into place with a glass-fibre reinforced pin
- Very secure and vibration resistant fixing

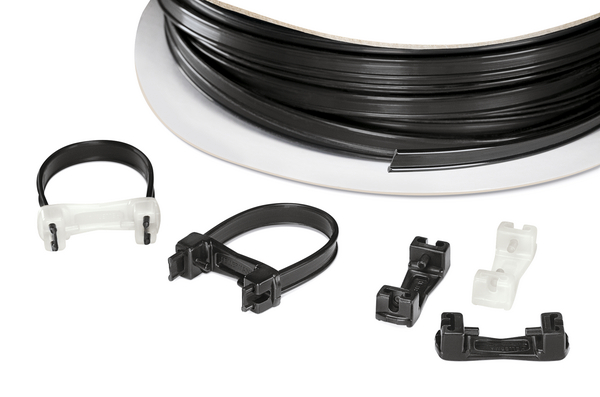

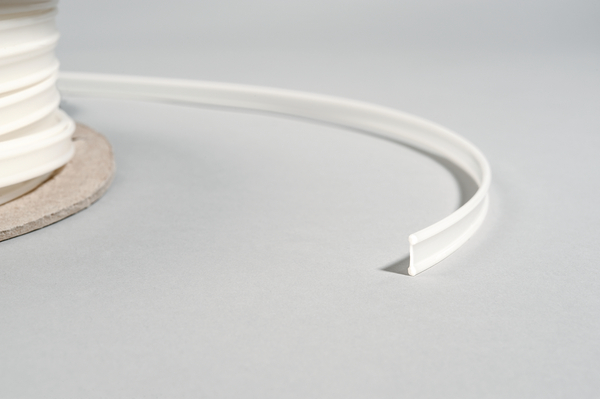

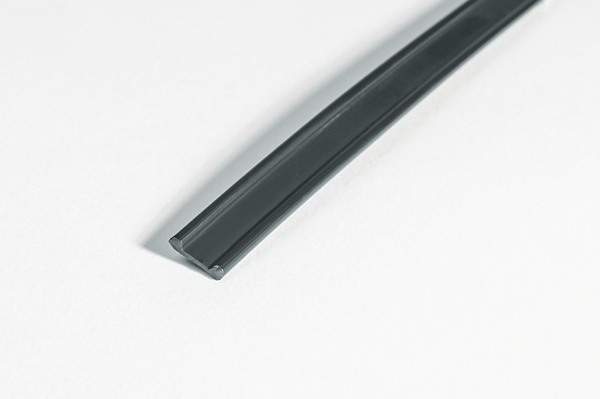

- Endless strap (50 m per reel) and separate heads for large bundle diameters
- Offers high flexibility and can be cut to suit any bundle
- For assembly a special KR-tool is needed
Certifications & Approvals
Application

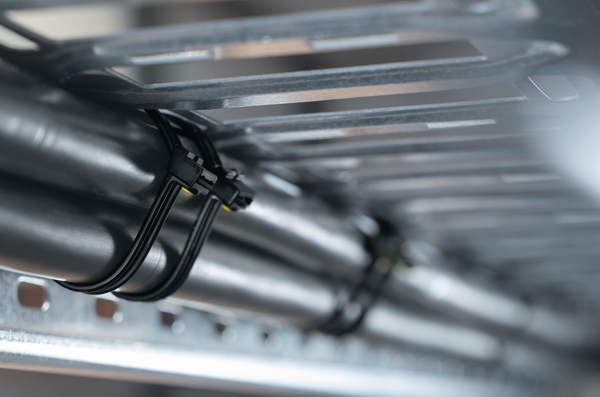

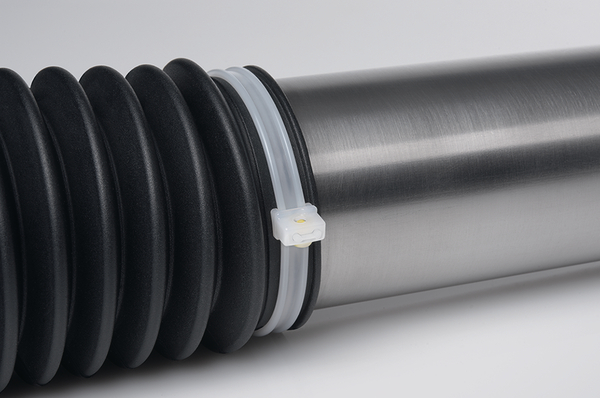

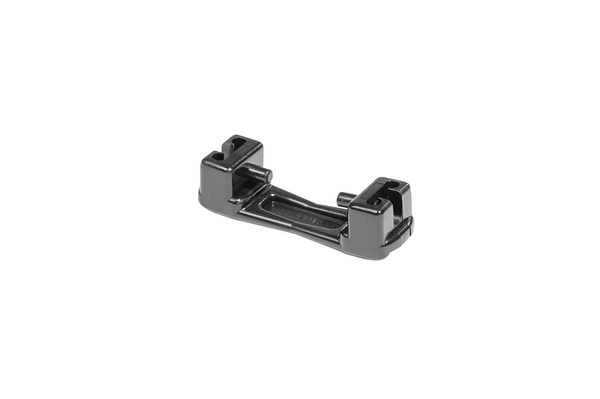

This cable tie is distinguished by its smooth strap and unique locking mechanism. The chamfered head of the KR-Series allows for a firm fit around the bundled element. Due to its special design KR-Series cable ties can be used as a safety method to bundle any cable and to also secure bellows on steering racks, water hoses or vacuum lines. The endless strap version is fairly flexible and can be cut to any length required. Separate heads are available to fix the strap.
More products in this product group
Cable tie locked by glass fibre pin >| Application Tool | KR6/8, KR8PNSE |
| Colour | Natural (NA) |
| Fixation Method | Cable Tie |
| Pack Cont. | 50.0m |
| Package Quantity per | Reel |
| PART DESCRIPTION | KR8/S1-PA66HS-NA |
| Product Family | KR-Series, endless |
| Product Group | Cable tie locked by glass fibre pin |
| Releasable Closure (Yes/No) | No |
| Short Description | Endless Cable Tie Strap System 50m x 8mm PA66HS natural |
| Tie Closure | fibreglass pin |
| Variant | No Serration |
|
|
|

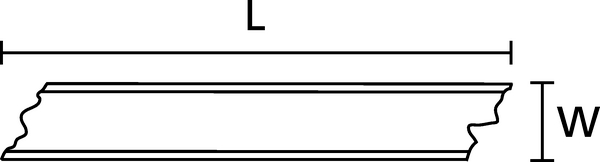

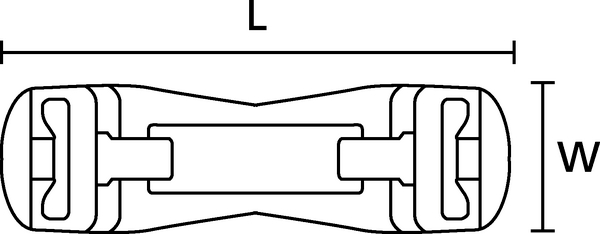

| Length (L) | 50.0m |
| Min.Tensile Strength | 785N |
| Thickness (T) | 2.05mm |
| Width (W) | 8.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+105 °C for 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 4031026114293 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01845m³ |
| Packaging 1 - Weight (kg) | 0.701815kg |
| Packaging 1 - Width (m) | 0.41m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 20 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 14.8563kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 199.32kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.68kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
