29/02/2024

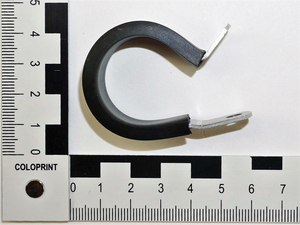

P-clamp, Ø5.2 mm, Dmax=23.8mm, closed, black, 100pcs.
Art.-No. 211-15170 | ALU17C-AL/CR-BK Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Black (BK)
Fixation Method screw-hole
Local order number ALU17C.M2P
Material Aluminium alloy (AL), Chloroprene rubber (CR)

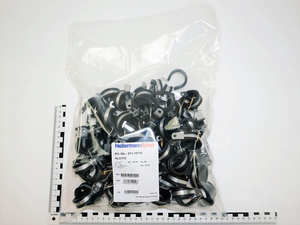

Pack Cont. 100pcs.
Package Content packed in pcs.
PART DESCRIPTION ALU17C-AL/CR-BK
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Short Description Aluminium P-Clip with Chloroprene Insert 23.8 mm
Variant Closed
Bundle Diameter max (Metric) 23.8mm
Bundle ∅ 23.8mm
Fixing Hole Centres (F2) 23.9mm
Fixing Hole Centres (F3) 5.5mm
for Hole ∅ (FH) 5.2 mm
Nominal ∅ 23.8mm
Radius (R) 2.8mm
Wall (WT) 4.5mm
Wall (WT2) 1.3mm
Weight/Unit 0.01099kg
Width (W) 16.3mm
Width (W2) 12.7mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5340-12-146-8748
Operating Temperature -20 °C to +80 °C
Specifications
UV-Stabilised (Yes/No) Yes
Country of Origin DE
Customs Number 76169990
GTIN-13 / EAN 4031026129198
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.120815kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.33m
Packaging 3 - Qty 400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0198
Packaging 3 - Weight (kg) 4.80826kg
Packaging 3 - Width (m) 0.24m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 16000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 213.36kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
