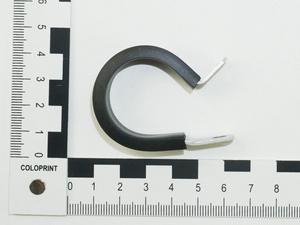

P-clamp closed, Dmax=25.4mm, ∅5.2 mm, black, 100pcs.
Art.-No. 211-15180 | ALU18C-AL/CR-BK Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

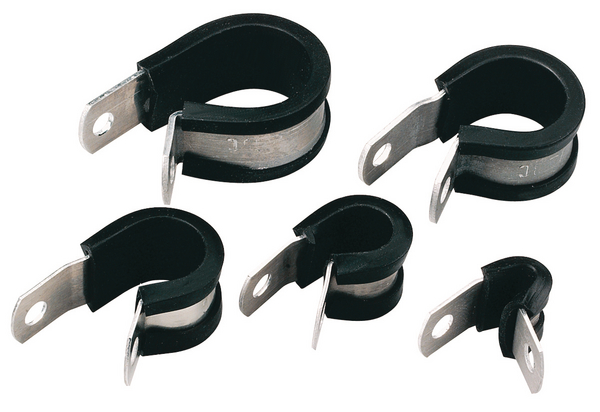

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Black (BK)
Fixation Method screw-hole
Local order number ALU18C.M2P
Material Aluminium alloy (AL), Chloroprene rubber (CR)
PART DESCRIPTION ALU18C-AL/CR-BK
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Short Description Aluminium P-Clip with Chloroprene Insert 25.4 mm
Type ALU18C
Variant Closed
Bundle Diameter max (metric) 25.4mm
Bundle ∅ 25.4mm

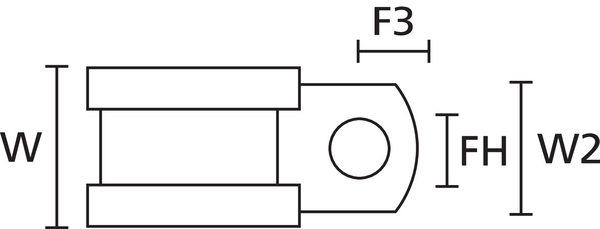

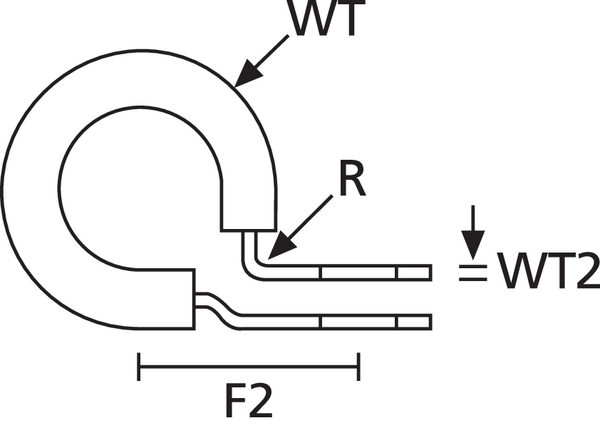

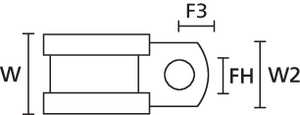

Fixing Hole Centres (F2) 24.6mm
Fixing Hole Centres (F3) 5.5mm
Nominal ∅ 25.4mm
Radius (R) 2.8mm
Wall (WT) 4.5mm
Wall (WT2) 1.3mm
Weight/Unit 0.011419kg
Width (W) 16.3mm
Width (W2) 12.7mm
for Hole ∅ (FH) 5.2 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5340-12-146-8750
Operating Temperature -20 °C to +80 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
Country of Origin DE
Customs Number 76169990
GTIN-13 / EAN 4031026129204
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m

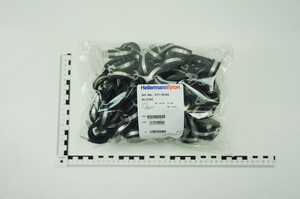

Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01845
Packaging 1 - Weight (kg) 1.163715kg
Packaging 1 - Width (m) 0.41m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 600
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 7.58229kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 203.002kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
