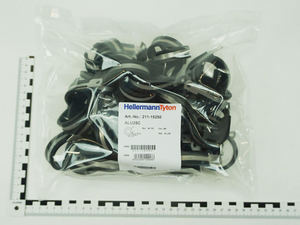

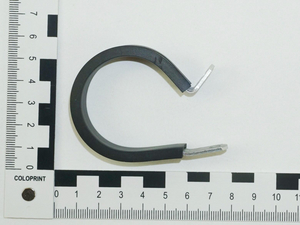

P-clamp closed, Ø5.2 mm, Dmax=36.5mm, black, 50pcs.
Art.-No. 211-15250 | ALU25C-AL/CR-BK Details

  • Simple and secure pipe or cable fixation
  • Can be combined with chloroprene rubber for vibration resistance
  • Ideal for use in high temperature applications
  • Suitable for applications needing strength of metal components

Request your individual offer now

Application Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector.
Colour Black (BK)
Fixation Method screw-hole
Material Aluminium alloy (AL), Chloroprene rubber (CR)
PART DESCRIPTION ALU25C-AL/CR-BK
Pack Cont. 50pcs.
Package Content packed in pcs.
Product Family Alu-P-Clamp with / without chloroprene insert
Product Group Aluminium P-Clamps
Short Description Aluminium P-Clip with Chloroprene Insert 36.5 mm
Type ALU25C
Variant Closed
Bundle Diameter max (metric) 36.5mm
Bundle ∅ 36.5mm
Fixing Hole Centres (F2) 30.8mm
Fixing Hole Centres (F3) 5.5mm
Nominal ∅ 36.5mm
Nominal ∅ (imperial) 1.44"
Radius (R) 3.2mm
Wall (WT) 4.5mm
Wall (WT) (imperial) 0.18"
Wall (WT2) 1.6mm
Weight/Unit 0.017339kg
Width (W) 16.3mm
Width (W2) 12.7mm
for Hole ∅ (FH) 5.2 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Nato number 5340-12-350-1099
Operating Temperature -20 °C to +80 °C
ROHS compliant Yes
Specifications
UV-Stabilised Yes
Country of Origin DE
Customs Number 76169990
GTIN-13 / EAN 4031026129266
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.880812kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 500
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 9.45812kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 10000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 210.19kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
