14/12/2024

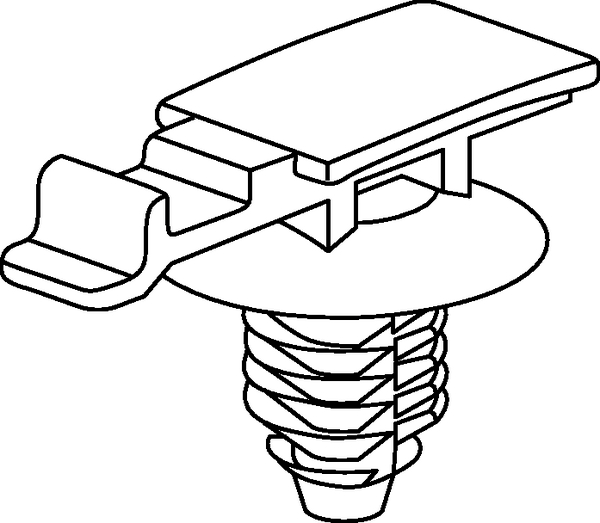

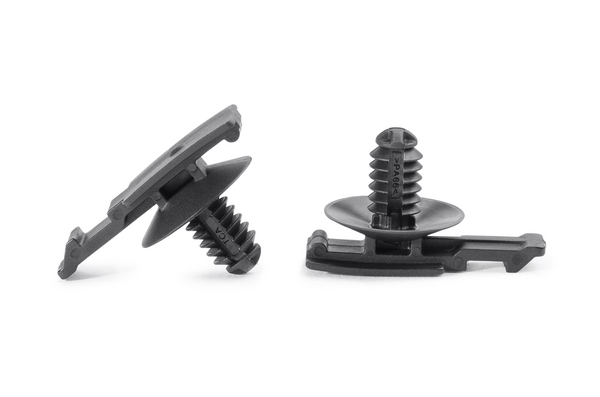

Connector clip for hole (round), black, 500pcs.
Art.-No. 151-01878 | CCFT5-6D16-PA66HIRHS-BK Details

  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times

Request your individual offer now

Colour Black (BK)
Local order number CCFT5-6D16_PA66HIRHS_BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCFT5-6D16-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family With Fir Tree
Product Group Connector Clips for round holes
Type CCFT5-6D16
Height (H) 16.3mm
Length (L) 27.5mm
Panel Thickness max. 0.7 - 4.5mm
Weight/Unit 0.000788kg
Width (W) 16.0mm
for Hole ∅ (FH) M6
for Panel Thickness min - max 0.7 - 4.5 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026576596
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0117
Packaging 1 - Weight (kg) 0.407862kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 15000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 13.05586kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 180000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 177.72kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702

Request your individual offer now
