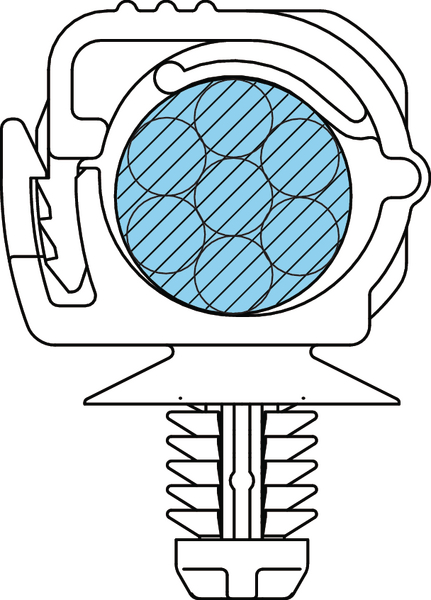

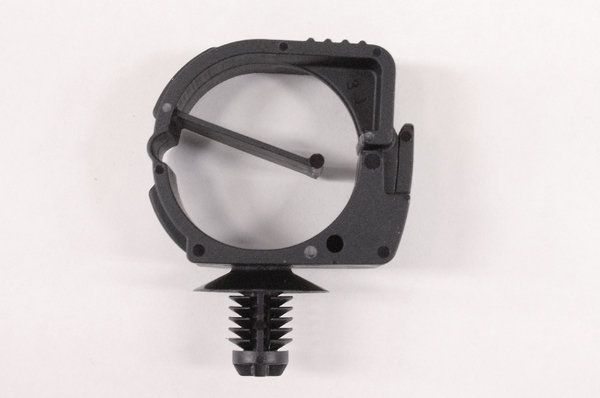

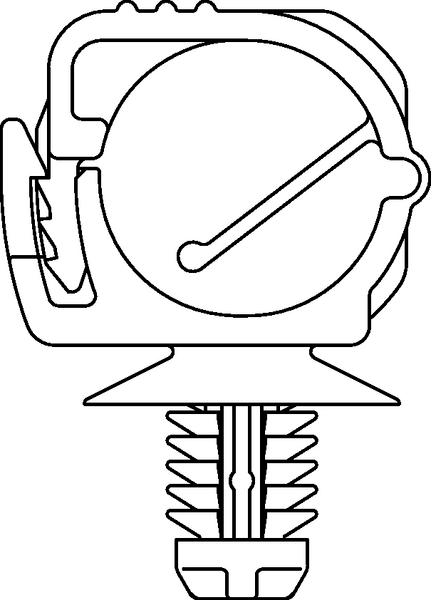

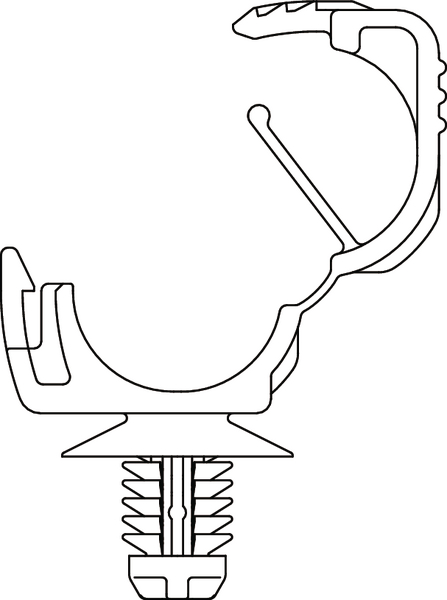

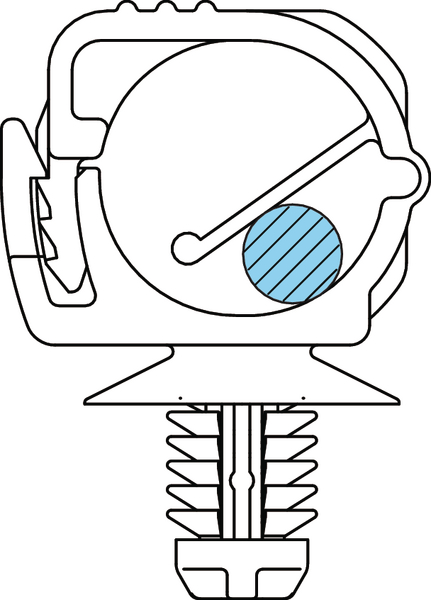

Cable clip, T=4.5mm, ∅7.0 mm, Dmax=20.0mm
Art.-No. 151-00853 | HC1220FT7J-PA66HSUV-BK Details

  • Fixing Elements for Tubes and Harnesses with Fir Tree Mount

Request your individual offer now

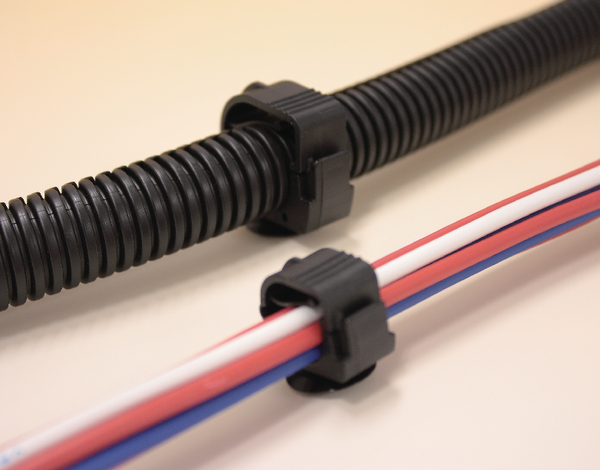

Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Colour Black (BK)
Description A new solution for fixing harnesses
Local order number HC1220FT7J-HSW
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
PART DESCRIPTION HC1220FT7J-PA66HSUV-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family With Fir Tree
Product Group Fixing Elements for Tubes and Harnesses
Short Description Harness Clip, close, round hole 7.0 mm, fir tree, heat and UV-stabilised, black
Type HC1220FT7J

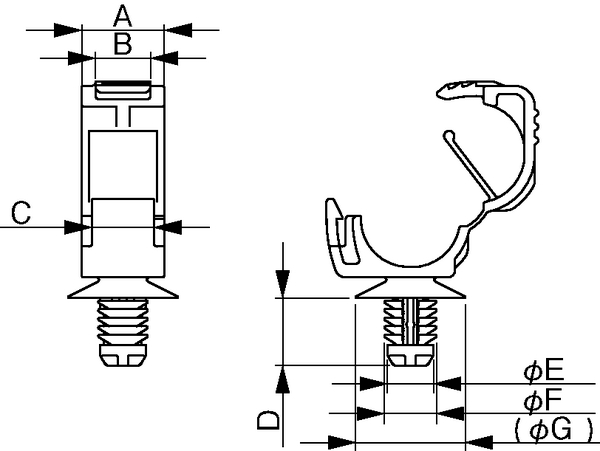

Attach to Ø 20.0
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 20.0mm

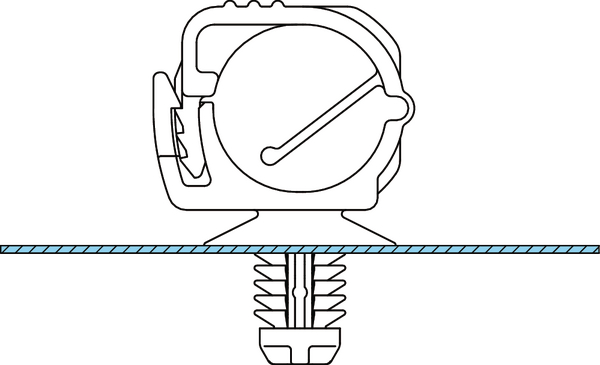

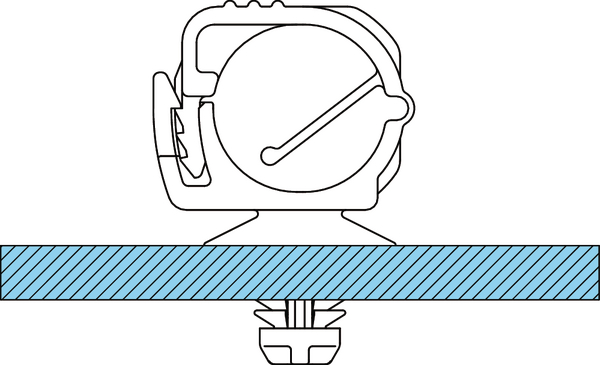

Panel Thickness max. 4.5mm
Weight/Unit 0.00387kg
Width (W) 12.0mm
for Hole ∅ (FH) 7.0 mm
for Panel Thickness min - max 4.5 - 4.5 mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +110 °C
ROHS compliant Yes
Specifications
Country of Origin JP
Customs Number 39269097
GTIN-13 / EAN 4944387961522
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 0.387001kg
Packaging 3 - Height (m) 0.315m
Packaging 3 - Length (m) 0.505m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0589
Packaging 3 - Weight (kg) 8.27002kg
Packaging 3 - Width (m) 0.37m
Packaging 4 - Height (m) 1.089m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 24000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.045
Packaging 4 - Weight (kg) 120.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
