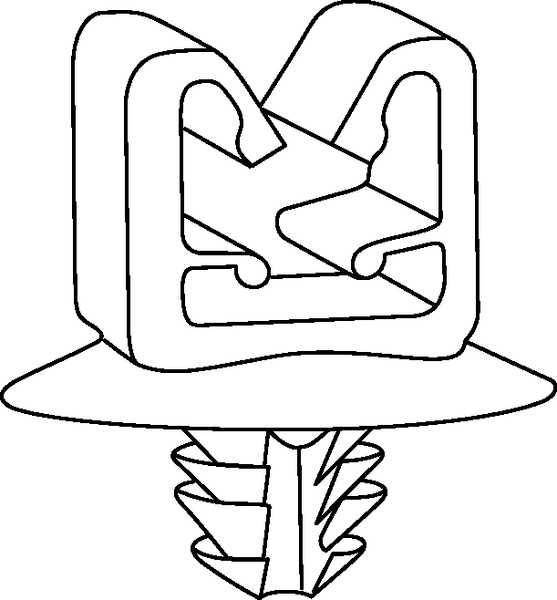

Cable clip, T=0.7 - 3.0mm, ∅4.5 - 5.0 mm, Dmin=4.3mm, Dmax=5.2mm
Art.-No. 151-01405 | HC48FT5-PA66HIRHS-BK Details

Request your individual offer now

Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
Cable ∅ max 5.2mm
Cable ∅ min 4.3mm
Colour Black (BK)
Local order number 151-01405
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION HC48FT5-PA66HIRHS-BK
Pack Cont. 5000pcs.
Package Content packed in Bag
Product Family With Fir Tree
Product Group Fixing Elements for Tubes and Harnesses
Short Description Fixing element with fir tree high impact modified, heat stabilised, black
Type HC48FT5
Attach to Ø 4.3 - 5.2
Bundle Diameter max (metric) 5.2mm
Bundle ∅ 4.3-5.2mm
Bundle ∅ min. 4.3mm
Height (H) 21.0mm
Panel Thickness max. 0.7 - 3.0mm
Weight/Unit 0.0013kg
for Hole ∅ (FH) 4.5 - 5.0 mm
for Panel Thickness min - max 0.7 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026535173
Packaging 3 - Height (m) 0.3m
Packaging 3 - Length (m) 0.4m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.036
Packaging 3 - Weight (kg) 6.995kg
Packaging 3 - Width (m) 0.3m
Packaging 4 - Height (m) 1.044m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 120000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.002
Packaging 4 - Weight (kg) 188.88kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
