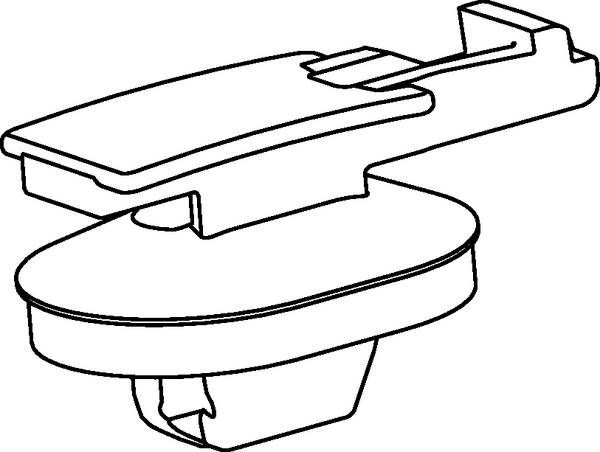

Connector clip for hole (oval), black, 1000pcs.
Art.-No. 151-01676 | CCIVSFT65130-MD-PA66HIR-BK

Copied
  • Easy to install by simply pushing into place
    Connection can be released (non-destructive)
    One fit tree foot part can be used for a variety of panel thicknesses
    Disc covers the hole to prevent dust and dirt gaining access

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Fixation Method Connector Clip
Local order number CCIVSFT6.5x15-MD/PA66HIR/BK/8000
Material Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION CCIVSFT65130-MD-PA66HIR-BK
Package Content 1000pcs.
Package Content packed in Bag
Product Family With Arrowhead
Product Group Connector Clips for Oval Holes
Type CCIVSFT65130-MD
Weight/Unit 0.001372kg
Height (H) 15.6mm
Length (L) 29.0mm
Panel Thickness max. 0.6 - 2.0mm
Width (W) 10.0mm
for Hole ⌀ (FH) 6.5 x 13.0 mm
for Panel Thickness min - max 0.6 - 2 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ROHS compliant Yes
Specifications
Country of Origin KR
Customs Number 39269097
GTIN-13 / EAN 4031026567969
Packaging 1 - Height (m) 0.09m
Packaging 1 - Length (m) 0.26m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.004212
Packaging 1 - Weight (kg) 0.686001kg
Packaging 1 - Width (m) 0.18m
Packaging 3 - Height (m) 0.21m
Packaging 3 - Length (m) 0.565m
Packaging 3 - Qty 4000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0451
Packaging 3 - Weight (kg) 5.988kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.195m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.147
Packaging 4 - Weight (kg) 140.76kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
