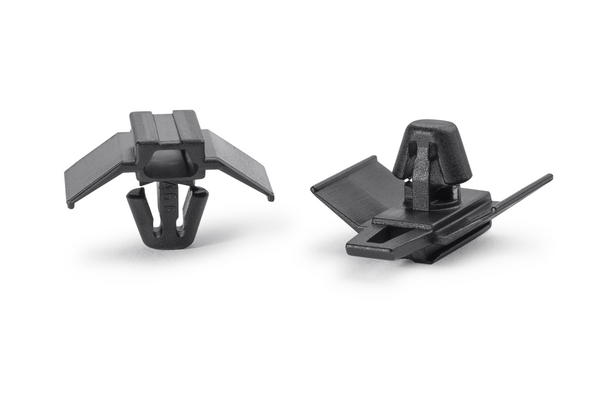

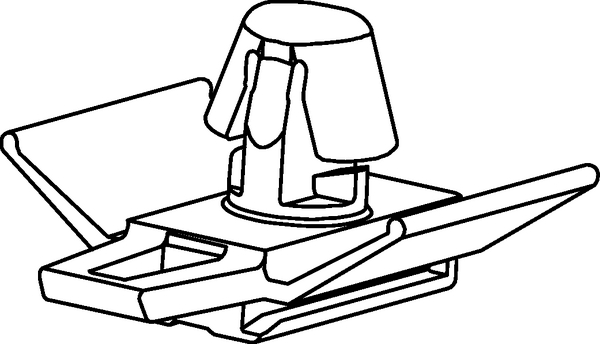

Connector clip for hole (round), black, 8000pcs.
Art.-No. 151-01809 | CCSFT6.3-PA66-BK

Copied
  • Connector easily installed by simply pushing into place
    Connection can be released (non-destructive)
    Arrowhead locks into place for secure fixing at all times

Request your individual offer now

Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Local order number CCSFT6.3_PA66_BK
Material Polyamide 6.6 (PA66)
PART DESCRIPTION CCSFT6.3-PA66-BK
Package Content 8000pcs.
Package Content packed in Box
Product Family With Arrowhead
Product Group Connector Clips for round holes
Short Description Connector Clip, round hole 6.3 - 6.5 mm, arrow head, black
Type CCSFT6.3
Weight/Unit 0.000747kg
Height (H) 13.0mm
Length (L) 23.0mm
Width (W) 21.4mm
for Hole ⌀ (FH) 6.3 - 6.5 mm
for Panel Thickness min - max 0.7 - 2.5 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026572864
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.395m
Packaging 1 - Qty 2000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01155375
Packaging 1 - Weight (kg) 1.523135kg
Packaging 1 - Width (m) 0.45m
Packaging 3 - Height (m) 0.184m
Packaging 3 - Length (m) 0.58m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0406
Packaging 3 - Weight (kg) 6.69254kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 192000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 181.608kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 31162305
