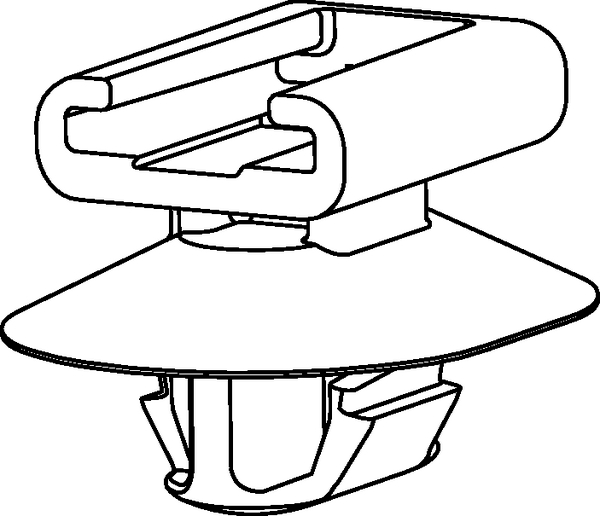

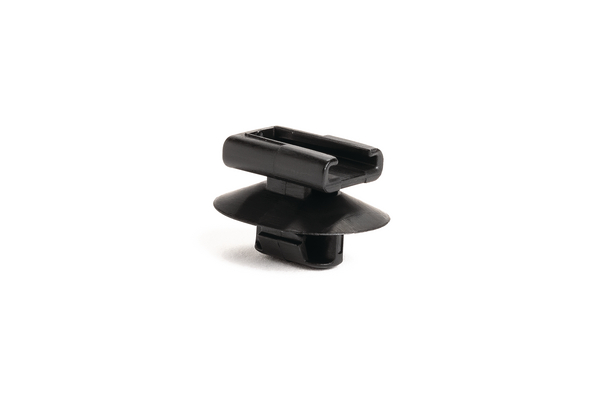

Connector clip for hole (oval), black, 7000pcs.
Art.-No. 151-01003 | CCKSFT6.2x12.2-PA66HIRHSUV-BK |

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Connector Clips for Oval Holes >

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Local order number	151-01003
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	CCKSFT6.2x12.2-PA66HIRHSUV-BK
Package Content	7000pcs.
Package Content packed in	Carton
Product Family	With Arrowhead
Product Group	Connector Clips for Oval Holes
Type	CCKSFT6.2x12.2
Type of connection	JCI
UV-Stabilised	Yes

Product Dimensions

Fixing Hole Shape	Oval
Height (H)	14.0mm
Length (L)	15.0mm
Panel Thickness max.	2.3 - 2.7mm
Width (W)	16.0mm
for Hole ⌀ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	2.3 - 2.7 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C, (+105 °C for 500 h)
ROHS compliant	No
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026449906
Packaging 1 - Type	Bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702

Similar products

STECKERHALTER-OVALFUSS-PA66HIRHS-BK 133-00004
Connector clip for hole (oval), EWCAP-005-11, black, 1000pcs.
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register
CC-PAEKSFT6.5PT1.7-2.3-PA66HIRHS-BK 151-00840
Connector clip for hole (oval), black, 10000pcs.
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register
CCSFT5-PA66HIRHS-BK 151-00980
Connector clip for hole (round), black, 500pcs.
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register
CCSFT8.5X16-PA66HIRHS-BK 151-01004
Connector clip for hole (oval), black, 500pcs.
On my watchlist Add to watchlist

To use the watchlist, please login or register:
Login / Register
CC14-PA66HIRHS-NA 151-01243

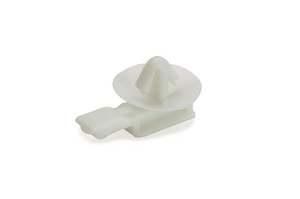

Connector clip for hole (round), EWCAP-005-7, natural, 4000pcs.
