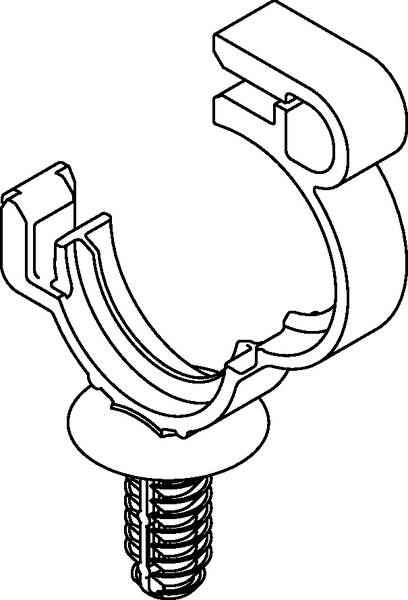

Corrugated tube clip for hole (round), nom⌀4.5mm, black, 6000pcs.
Art.-No. 151-02274 | CTCL4.5FT6LG-PA66HIRHS-BK |

The tubing clips into the CTC clamp and is held firmly.

CTC10FT6LG

CTC convoluted tubing clip.

CTC clamps for a variety of nominal diameters
Fir tree foot part can be used for a variety of panel thicknesses
Suitable for use within threaded holes
Tube is guided accurately by clicking
Axial slipping is prevented by the inside profile of the clamp

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Fixing elements for corrugated tubing, with fir tree >

Base Data

Application	CTC clamps are used for example in the automobile, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed.
Colour	Black (BK)
Fixation Method	Fir Tree
Key product features	for convoluted tubes or with rib, reusable, removable, lockable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CTCL4.5FT6LG-PA66HIRHS-BK
Package Content	6000pcs.
Package Content packed in	Bag
Product Family	CTC-Series
Product Group	Fixing elements for corrugated tubing, with fir tree
Type	CTCL4.5FT6LG
Weight/Unit	0.001086kg

Product Dimensions

Attach to ⌀	NW4.5
Bundle ⌀	6.5-7.0mm
Bundle ⌀ max.	7.0mm
Bundle ⌀ min.	6.5mm
Disc ⌀	16.0mm
Height (H)	36.8mm
Height (H2)	25.0mm
Nominal ⌀	4.5mm
Panel Thickness max.	0.75 - 6.0mm
Width (W)	10.0mm
for Hole ⌀ (FH)	6.5 - 7.0 mm
for Panel Thickness min - max	0.8 - 6 mm

Downloads

Specifications

ELV compliant Dir. Art. 4 (2)	YES
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026456560
Packaging 1 - Height (m)	0.8m
Packaging 1 - Length (m)	0.6m
Packaging 1 - Qty	6000
Packaging 1 - Type	Bag
Packaging 1 - Volume (m³)	0.192m³
Packaging 1 - Weight (kg)	6.581411kg
Packaging 1 - Width (m)	0.4m
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	6000
Packaging 3 - Type	Box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	7.543411kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.204m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	120000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.156m³
Packaging 4 - Weight (kg)	171.86kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
