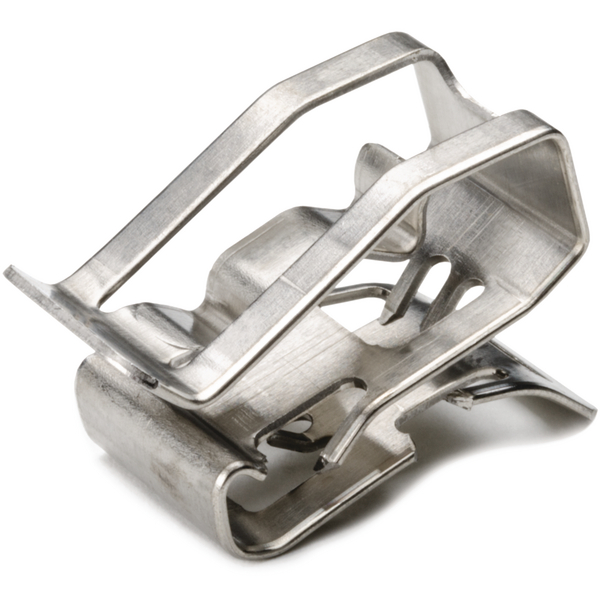

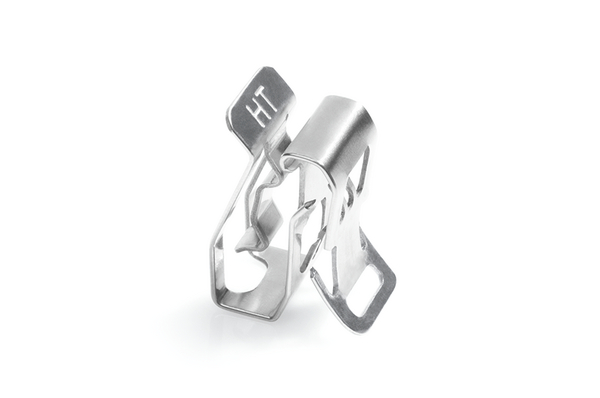

Metal cable clip for edge, ∅5.0-7.6mm, T=1.0 - 3.0mm, metal, 5000pcs.
Art.-No. 151-02320 | MSC2-SS304-ML Details

  • Integrated design allows for easy insertion by hand
  • The panel thickness range allows for multiple applications
  • Double-compression design that accommodates various sizes of wire and cable
  • Presents a high extraction force for withstanding extreme conditions
  • Made from stainless steel
Show more
Package size

Request your individual offer now

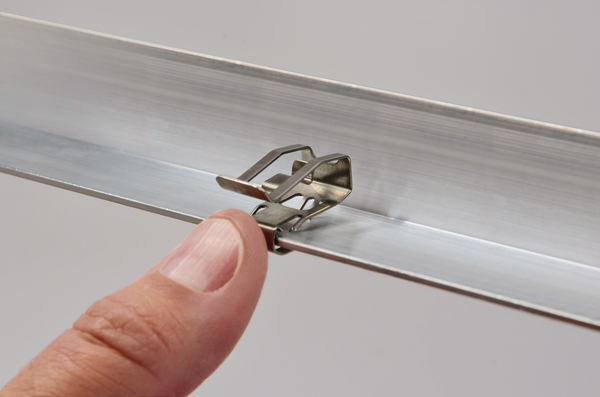

Application HellermannTyton's Heavy Duty Metal Edge Clip provides an excellent alternative to managing wire and PV cables where plastic fasteners are not the preferred method. Designed for effortless insertion, the Metal Edge Clip has a high extraction force that tolerates extreme environments and provides assurance that the cables are secure on a panel. The Metal Edge Clip is simple to install and can easily be removed with a flathead screwdriver.
Cable ∅ max 7.6mm
Cable ∅ min 5.0mm
Colour Metal (ML)
Fixation Method Edge Clip
Local order number 151-02320
Material Stainless Steel (SS304)
PART DESCRIPTION MSC2-SS304-ML
Pack Cont. 5000pcs.
Package Content packed in Box
Product Family For solar panels
Product Group Solar clip with edge clip SS MSC2
Type MSC2
Attach to Ø 5.0 - 7.6
Bundle Diameter max (metric) 7.6mm
Bundle ∅ 5.0-7.6mm
Bundle ∅ min. 5.0mm
Depth (D) 21.90mm
Depth D2 (metric) 19.1mm

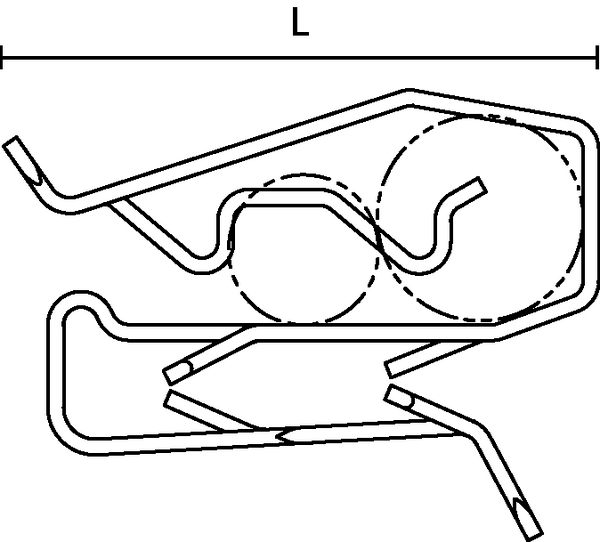

Length (L) 24.1mm
Panel Thickness max. 1.0 - 3.0mm
Weight/Unit 0.0039kg

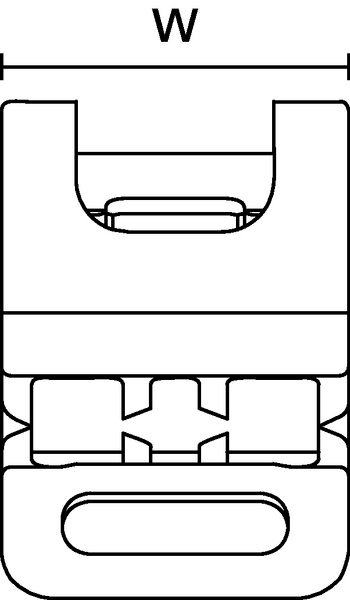

Width (W) 13.0mm
for Panel Thickness min - max 1 - 3 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised Yes
Country of Origin MX
Customs Number 73269098
GTIN-13 / EAN 4031026673554
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 19.500001kg
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 5000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 20.320001kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Height (m) 1.263m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.212
Packaging 4 - Weight (kg) 264.84kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
