08/11/2024

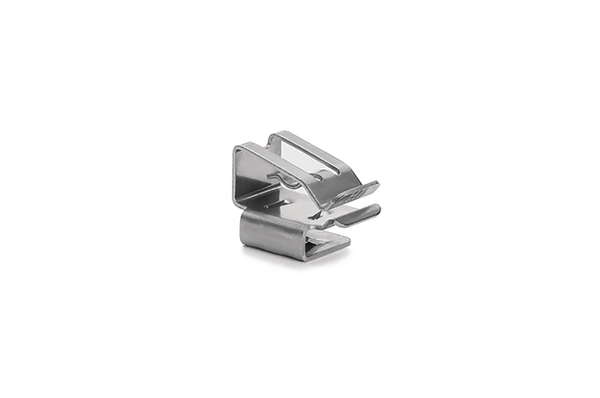

Metal cable clip for edge, ∅4.1-7.0mm, T=1.5 - 2.0mm, metal, 5000pcs.
Art.-No. 151-02291 | MSC90-SS304-ML Details

Package size

Request your individual offer now

Cable ∅ max 7.0mm
Cable ∅ min 4.1mm
Colour Metal (ML)
Fixation Method Edge Clip
Local order number 151-02291
Material Stainless Steel (SS304)
PART DESCRIPTION MSC90-SS304-ML
Pack Cont. 5000pcs.
Package Content packed in Box

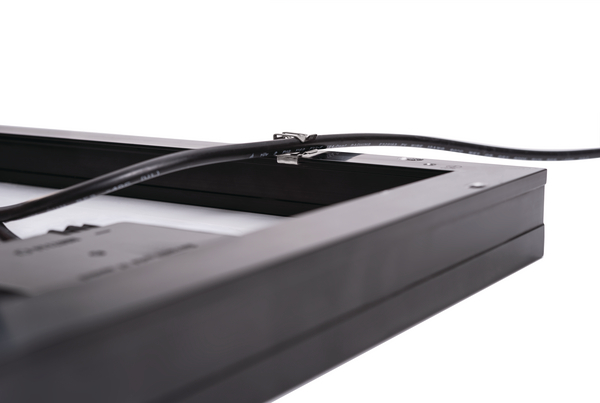

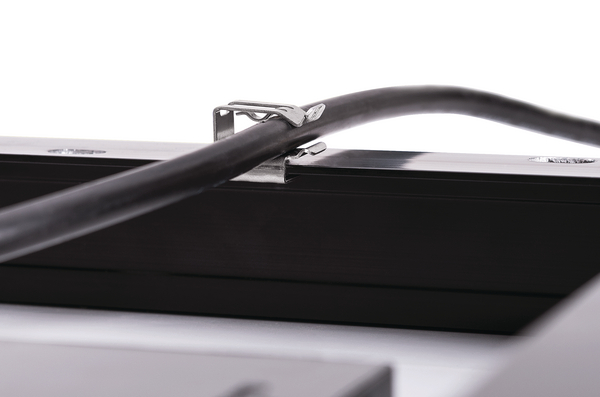

Product Family For solar panels
Product Group Fixing elements for edges
Type MSC90
Attach to Ø 4.1 - 7.0
Bundle Diameter max (metric) 7.0mm
Bundle ∅ 4.1-7.0mm
Bundle ∅ min. 4.1mm
Depth (D) 11.303mm
Depth D2 (metric) 11.303mm

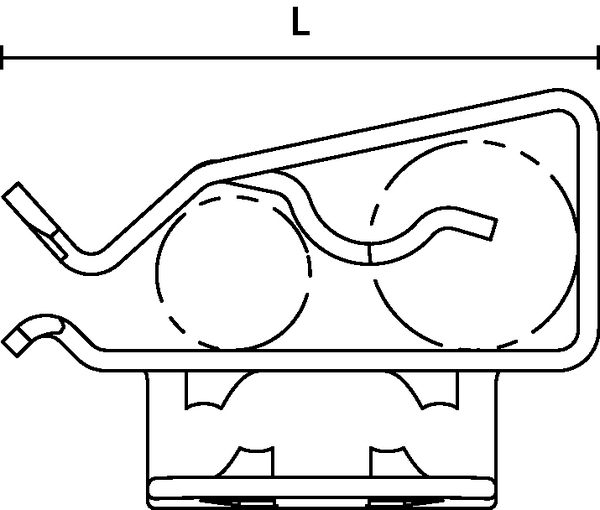

Length (L) 18.44mm
Panel Thickness max. 1.5 - 2.0mm
Weight/Unit 0.0029kg

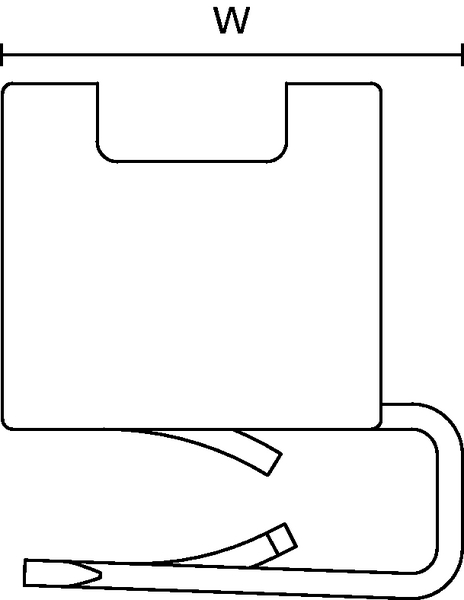

Width (W) 11.57mm
for Panel Thickness min - max 1.5 - 2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised Yes
Country of Origin US
Customs Number 73269098
GTIN-13 / EAN 4031026673547
Packaging 1 - Qty 5000
Packaging 1 - Type Bag
Packaging 1 - Weight (kg) 14.500001kg
Packaging 3 - Height (m) 0.22m
Packaging 3 - Length (m) 0.31m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0177
Packaging 3 - Weight (kg) 14.700001kg
Packaging 3 - Width (m) 0.26m
Packaging 4 - Height (m) 1.244m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 225000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.194
Packaging 4 - Weight (kg) 682.5kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702

Request your individual offer now
