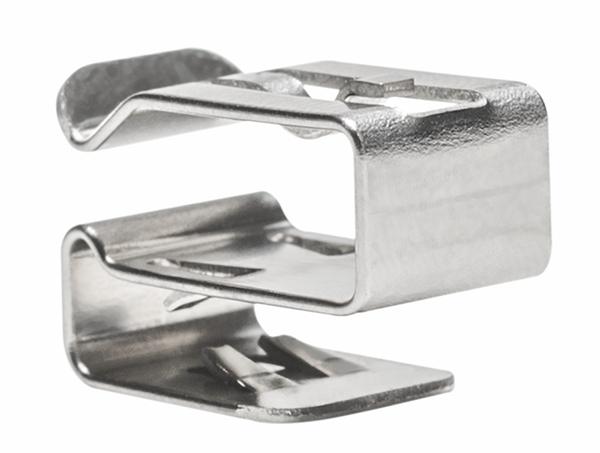

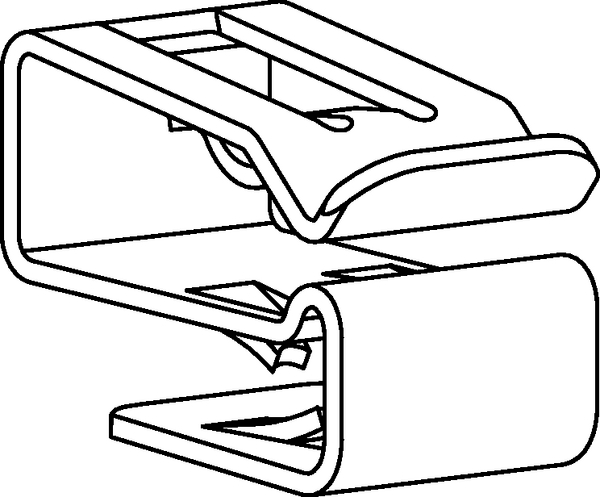

Metal cable clip for edge, Ø4.1-7.0mm, T=1.5 - 2.0mm, metal, 100pcs.
Art.-No. 151-01699 | MSC2LP-SS304-ML Details

  • Integrated design allows for easy insertion by hand
  • The panel thickness range allows for multiple applications
  • Double-compression design that accommodates various sizes of wire and cable
  • Presents a high extraction force for withstanding extreme conditions
  • Made from stainless steel
Show more
Package size

Request your individual offer now

Cable ∅ max 7.0mm
Cable ∅ min 4.1mm
Colour Metal (ML)
Fixation Method Edge Clip
Local order number 151-01699
Material Stainless Steel (SS304)
PART DESCRIPTION MSC2LP-SS304-ML
Pack Cont. 100pcs.
Package Content packed in Bag

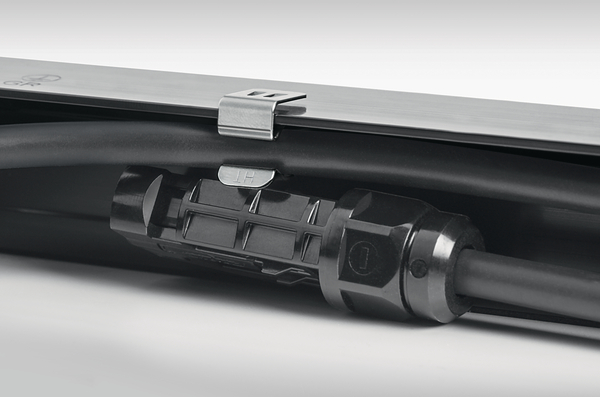

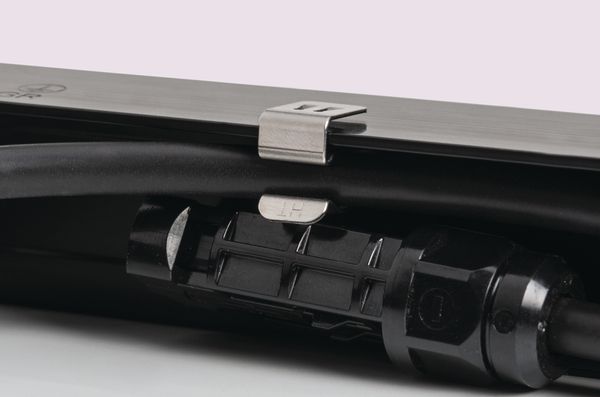

Product Family For solar panels
Product Group Solar clip with edge clip SS MSC2
Short Description Metal edge clip 17x9.5 mm, 1.5 - 2 mm panel thickness
Type MSC2LP
Attach to Ø 4.1 - 7.0
Bundle Diameter max (metric) 7.0mm
Bundle ∅ 4.1-7.0mm
Bundle ∅ min. 4.1mm
Depth (D) 16.48mm
Depth D2 (metric) 12.0mm

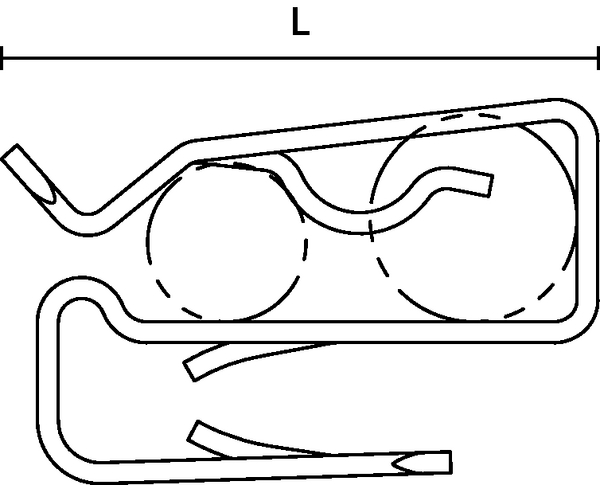

Length (L) 17.0mm
Panel Thickness max. 1.5 - 2.0mm
Weight/Unit 0.002558kg

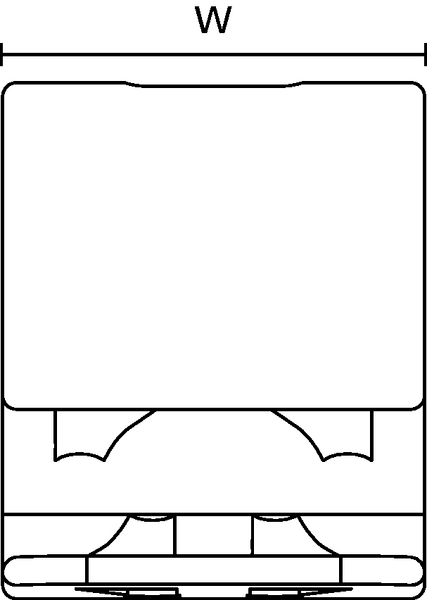

Width (W) 9.50mm
for Panel Thickness min - max 1.5 - 2 mm
CE Certification No
CSA Certified No
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -80 °C to +538 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised Yes
Country of Origin US
Customs Number 73269098
GTIN-13 / EAN 4031026571164
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.21m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00068
Packaging 1 - Weight (kg) 0.255801kg
Packaging 1 - Width (m) 0.13m
Packaging 3 - Height (m) 0.265m
Packaging 3 - Length (m) 0.31m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0218
Packaging 3 - Weight (kg) 13.29kg
Packaging 3 - Width (m) 0.265m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 165000
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 459.57kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121702
