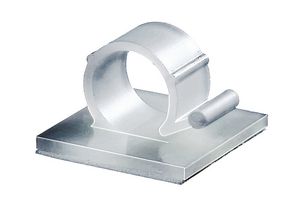

Cable clip for adhesive use/with pipe/tube holder, Dmax=13.0mm
Art.-No. 151-13021 | RA13-PA66-NA Details

  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Designed to hold wires, cables or hoses
  • Different sizes for various bundle diameters available
  • Two types of adhesive can be offered
Show more

Request your individual offer now

Application These mounts are ideal for use in applications which are difficult to access or for areas where self adhesive is the only possible fixing method and fixing holes would be unacceptable. The self adhesive mounts can be used without cable ties. Offering process optimization in industries like automotive, bus and truck, construction vehicles or industrial building.
Colour Natural (NA)
Description Self Adhesive Clip RA13
Fixation Method Pasting / Stick
Local order number RA13.NN3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RA13-PA66-NA
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family RA-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with round design 25x25 mm natural
Type RA13
Variant Closed
Bundle Diameter max (metric) 13.0mm
Bundle ∅ 13.0mm
Height (H) 16.5mm
Height (H2) 2.1mm
Length (L) 25.0mm
Nominal ∅ 13mm
Weight/Unit 0.00235kg
Width (W) 25.0mm
Width (W2) 10.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660314438
Packaging 1 - Height (m) 0.071m
Packaging 1 - Length (m) 0.17m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0021
Packaging 1 - Weight (kg) 0.235001kg
Packaging 1 - Width (m) 0.174m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 7.67003kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 54000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 159.06kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
