Cable clip for adhesive use/with pipe/tube holder, Dmax=18.0mm, natural, 100pcs.
Art.-No. 151-13119 | RA18-PA66-NA Details

  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Designed to hold wires, cables or hoses
  • Different sizes for various bundle diameters available
  • Two types of adhesive can be offered
Show more

Request your individual offer now

Application These mounts are ideal for use in applications which are difficult to access or for areas where self adhesive is the only possible fixing method and fixing holes would be unacceptable. The self adhesive mounts can be used without cable ties. Offering process optimization in industries like automotive, bus and truck, construction vehicles or industrial building.
Colour Natural (NA)
Fixation Method Pasting / Stick
Local order number RA18.NN3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RA18-PA66-NA
Pack Cont. 100pcs.
Package Content packed in pcs.
Product Family RA-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with round design 28.5x28.5 mm natural
Type RA18
Variant Closed

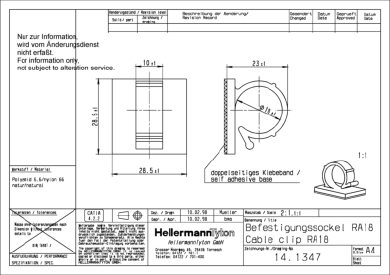

Bundle Diameter max (metric) 18.0mm
Bundle ∅ 18.0mm
Height (H) 23.0mm
Height (H2) 2.6mm
Length (L) 28.5mm
Nominal ∅ 18mm
Weight/Unit 0.00381kg
Width (W) 28.5mm
Width (W2) 10.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660314506
Packaging 1 - Height (m) 0.065m
Packaging 1 - Length (m) 0.3m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00351
Packaging 1 - Weight (kg) 0.381001kg
Packaging 1 - Width (m) 0.18m
Packaging 3 - Height (m) 0.375m
Packaging 3 - Length (m) 0.41m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0484
Packaging 3 - Weight (kg) 8.12kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.27m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.219
Packaging 4 - Weight (kg) 167.16kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
